I-PE

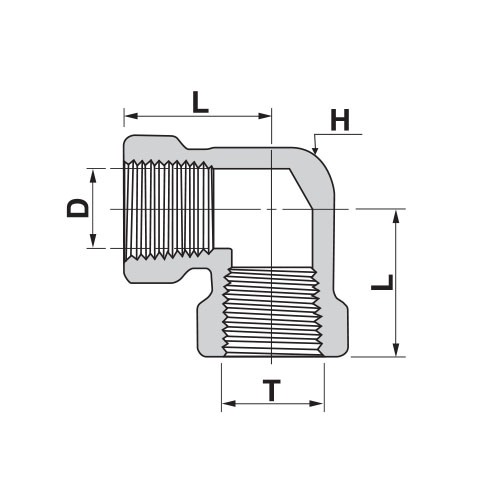

Elbow(Female NPT both ends)
| Part Number | NPT Size T |
L | D | H Wrench Flat |
| I-PE-2N | 1/8 | 24.1 | 8.9 | 12.7 |
| I-PE-4N | 1/4 | 29.0 | 11.7 | 17.5 |
| I-PE-6N | 3/8 | 34.5 | 15.0 | 20.6 |
| I-PE-8N | 1/2 | 37.0 | 18.7 | 25.4 |
| I-PE-12N | 3/4 | 46.5 | 23.5 | 31.8 |
| I-PE-16N | 1 | 48.5 | 29.7 | 42.9 |
| Heavy Wall 10,000psig | ||||
| I-PE-4N-10K | 1/4 | 37.0 | 11.4 | 25.4 |
| I-PE-8N-10K | 1/2 | 49.2 | 18.5 | 42.9 |
