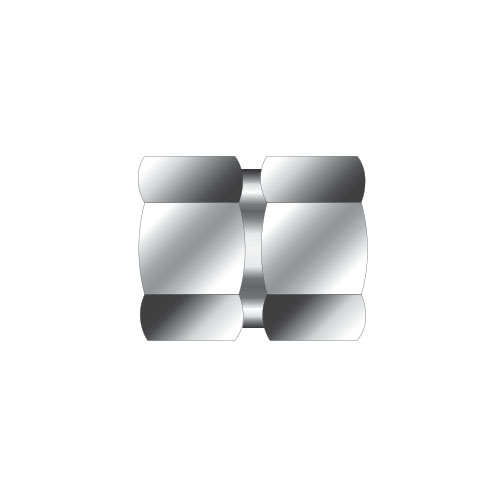

I-PHC
Hex Coupling(Female NPT both ends)

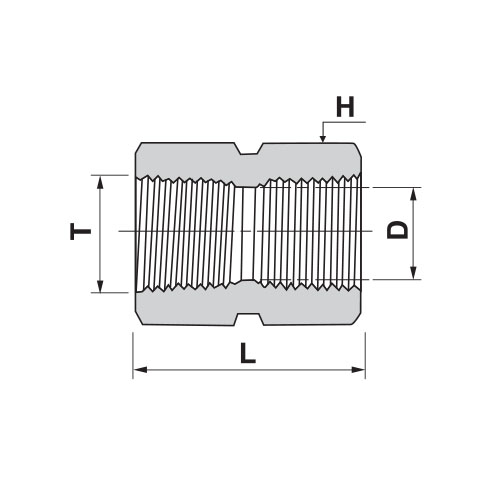

| Part Number | NPT Size |
L | D | H Wrench Flat |
| I-PHC-2N | 1/8 | 20.3 | 8.9 | 14.2 |
| I-PHC-4N | 1/4 | 30.0 | 11.7 | 19.05 |
| I-PHC-6N | 3/8 | 33.0 | 15.0 | 22.2 |
| I-PHC-8N | 1/2 | 39.4 | 18.7 | 26.9 |
| I-PHC-12N | 3/4 | 41.0 | 23.9 | 33.3 |
| I-PHC-16N | 1 | 50.5 | 29.7 | 41.2 |
| Heavy Wall 10,000psig | ||||
| I-PHC-4N-10K | 1/4 | 30.2 | 11.4 | 25.4 |
| I-PHC-8N-10K | 1/2 | 39.6 | 18.5 | 38.1 |
