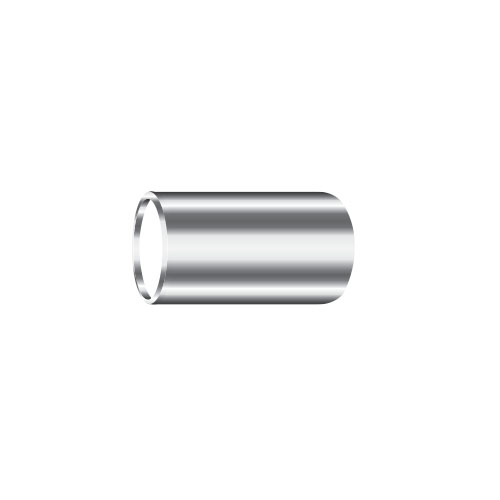

I-PSWU
Union(Socket weld Ends)

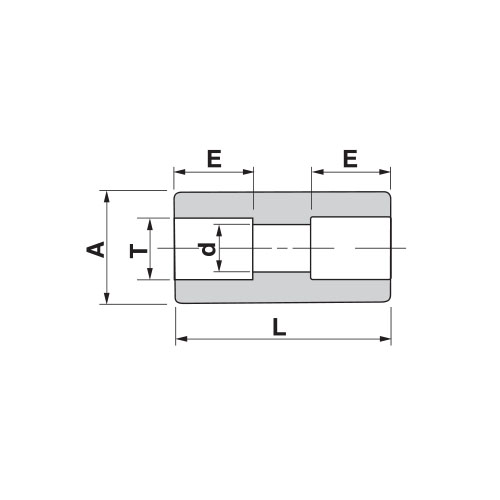

| Part Number | Tube O. D T |
d | A | E | L | Pressure Ratings SS316 | |
| Psig | bar | ||||||
| I-PSWU-4T | 1/4 | 4.6 | 13.0 | 7.1 | 19.0 | 10,000 | 689 |
| I-PSWU-6T | 3/8 | 7.1 | 15.8 | 7.9 | 22.4 | 7,600 | 523 |
| I-PSWU-8T | 1/2 | 10.2 | 19.0 | 9.7 | 26.9 | 6,200 | 427 |
| I-PSWU-10T | 5/8 | 12.7 | 24.0 | 10.4 | 30.2 | 6,400 | 440 |
| I-PSWU-12T | 3/4 | 15.7 | 26.9 | 11.2 | 33.3 | 5,500 | 378 |
| I-PSWU-16T | 1 | 22.1 | 35.0 | 15.7 | 36.6 | 5,200 | 358 |
