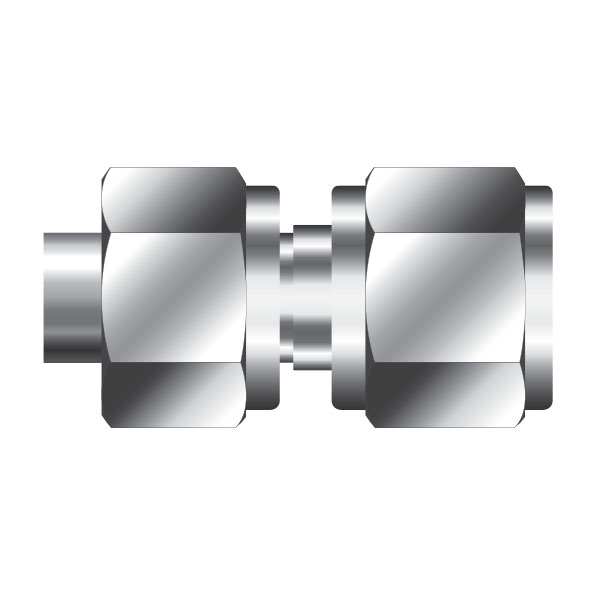

OAA
AN Adapter
Connects fractional OTG-LOK tube fitting port to AN male

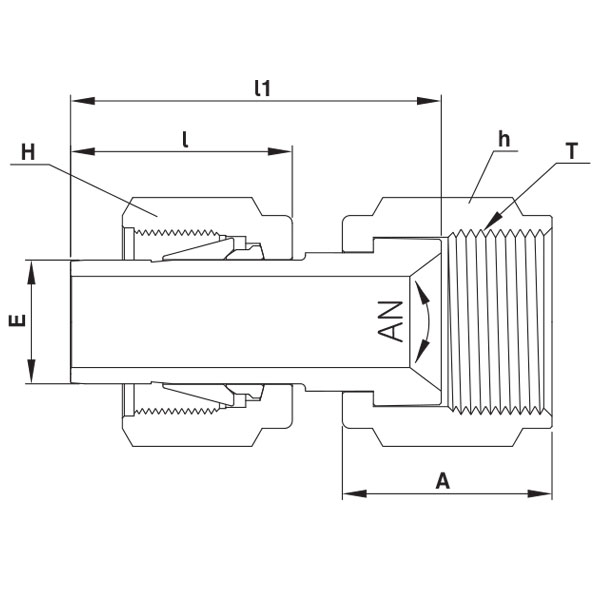

| Part No. |
Tube O.D D |
AN Tube Flare Size |
Straight Thread T(U) |
Width across flat | A | l | l1 | |||||
| h | H | |||||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||||
| OAA 2-2 | 1/8 | 3.17 | 1/8 | 3.17 | 5/16-24 | 3/8 | 9.52 | 7/16 | 11.11 | 13.71 | 13.46 | 18.54 |
| OAA 2-4 | 1/8 | 3.17 | 1/4 | 6.35 | 7/16-20 | 9/16 | 14.28 | 7/16 | 11.11 | 15.74 | 13.46 | 19.05 |
| OAA 4-4 | 1/4 | 6.35 | 1/4 | 6.35 | 7/16-20 | 9/16 | 14.28 | 9/16 | 14.28 | 15.74 | 15.74 | 21.33 |
| OAA 6-6 | 3/8 | 9.52 | 3/8 | 9.52 | 9/16-18 | 11/16 | 17.46 | 11/16 | 17.46 | 18.28 | 17.52 | 24.89 |
| OAA 8-8 | 1/2 | 12.70 | 1/2 | 12.70 | 3/4-16 | 7/8 | 22.22 | 7/8 | 22.22 | 21.59 | 23.11 | 31.75 |
