OFC-N

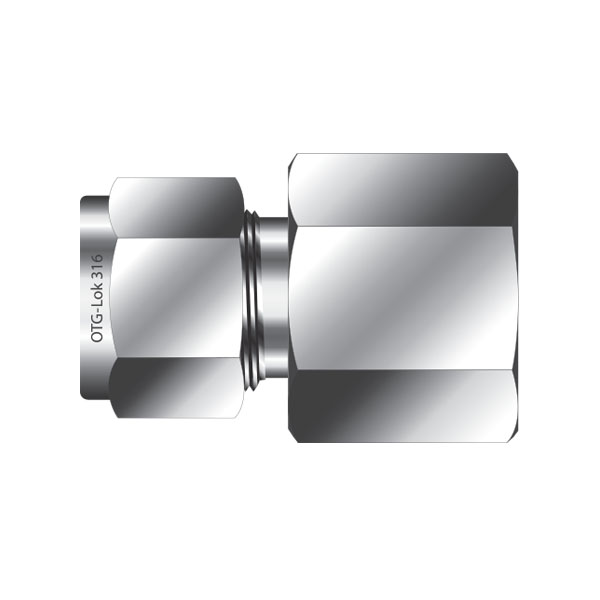

Female Connector NPT Thread

Connects fractional tube to male NPT thread

Untitled Document

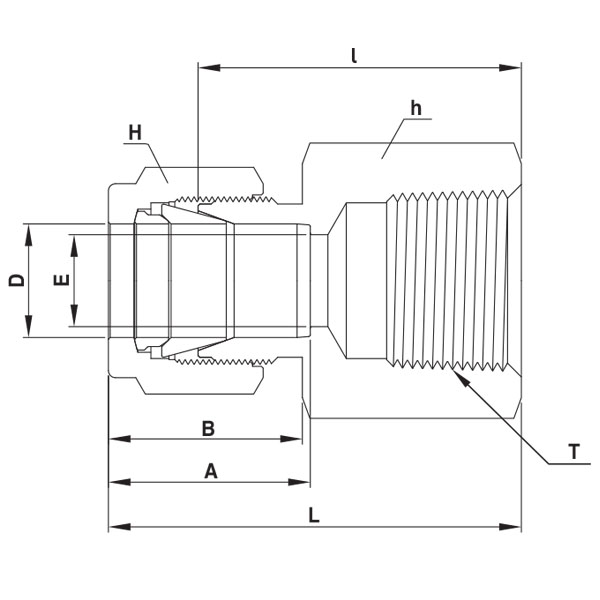

Part No.	Tube O.D D		T NPT	E Min.	Width across flat				A	B	l	L
	Tube O.D D				h		H
	in.	mm			in.	mm	in.	mm
OFC 1-1N	1/16	1.59	1/16	1.27	7/16	11.11	5/16	7.93	8.63	10.92	19.81	23.62
OFC 1-2N	1/16	1.59	1/8	1.27	9/16	14.28	5/16	7.93	8.63	10.92	20.57	24.38
OFC 2-2N	1/8	3.17	1/8	2.28	9/16	14.28	7/16	11.11	12.70	15.24	22.09	28.70
OFC 2-4N	1/8	3.17	1/4	2.28	3/4	19.05	7/16	11.11	12.70	15.24	26.92	33.52
OFC 3-2N	3/16	4.76	1/8	3.04	9/16	14.28	1/2	12.70	13.71	16.00	23.11	29.71
OFC 4-2N	1/4	6.35	1/8	4.82	9/16	14.28	9/16	14.28	15.24	17.78	23.87	31.24
OFC 4-4N	1/4	6.35	1/4	4.82	3/4	19.05	9/16	14.28	15.24	17.78	28.44	35.81
OFC 4-6N	1/4	6.35	3/8	4.82	7/8	22.22	9/16	14.28	15.24	17.78	28.44	37.59
OFC 4-8N	1/4	6.35	1/2	4.82	1-1/16	26.98	9/16	14.28	15.24	17.78	35.05	42.41
OFC 5-2N	5/16	7.93	1/8	6.35	9/16	14.28	5/8	15.87	16.25	18.54	24.63	32.00
OFC 5-4N	5/16	7.93	1/4	6.35	3/4	19.05	5/8	15.87	16.25	18.54	29.46	36.83
OFC 6-2N	3/8	9.52	1/8	7.11	5/8	15.87	11/16	17.46	16.76	19.30	25.40	32.76
OFC 6-4N	3/8	9.52	1/4	7.11	3/4	19.05	11/16	17.46	16.76	19.30	30.22	37.59
OFC 6-6N	3/8	9.52	3/8	7.11	7/8	22.22	11/16	17.46	16.76	19.30	31.75	39.11
OFC 6-8N	3/8	9.52	1/2	7.11	1-1/16	26.98	11/16	17.46	16.76	19.30	36.57	43.94
OFC 6-12N	3/8	9.52	3/4	7.11	1-5/16	33.33	11/16	17.46	16.76	19.30	40.38	47.45
OFC 8-4N	1/2	12.70	1/4	10.41	1-3/16	20.64	7/8	22.22	22.86	21.84	30.22	40.38
OFC 8-6N	1/2	12.70	3/8	10.41	7/8	22.22	7/8	22.22	22.86	21.84	31.75	41.91
OFC 8-8N	1/2	12.70	1/2	10.41	1-1/16	26.98	7/8	22.22	22.86	21.84	36.57	46.73
OFC 8-12N	1/2	12.70	3/4	10.41	1-5/16	33.33	7/8	22.22	22.86	21.84	38.10	48.26
OFC 10-6N	5/8	15.87	3/8	12.70	15/16	23.81	1	25.40	24.38	21.84	31.75	41.91
OFC 10-8N	5/8	15.87	1/2	12.70	1-1/16	26.98	1	25.40	24.38	21.84	36.57	46.73
OFC 10-12N	5/8	15.87	3/4	12.70	1-5/16	33.33	1	25.40	24.38	21.84	38.10	48.26
OFC 12-8N	3/4	19.05	1/2	15.74	1-1/16	26.98	1-1/8	28.58	24.38	21.84	36.57	46.73
OFC 12-12N	3/4	19.05	3/4	15.74	1-5/16	33.33	1-1/8	28.58	24.38	21.84	38.10	48.26
OFC 14-12N	7/8	22.22	3/4	18.28	1-5/16	33.33	1-1/4	31.75	25.90	21.84	39.62	49.78
OFC 16-12N	1	25.40	3/4	22.35	1-3/8	34.92	1-1/2	38.10	31.24	26.41	41.14	53.34
OFC 16-16N	1	25.40	1	22.35	1-5/8	41.27	1-1/2	38.10	31.24	26.41	50.03	62.23
OFC 20-20N	1-1/4	31.75	1-1/4	27.68	2-1/8	53.98	1- 7/8	47.63	41.14	38.86	52.57	74.67
OFC 24-24N	1-1/2	38.10	1-1/2	34.03	2-3/8	60.33	2-1/4	57.15	50.03	45.21	56.13	83.31
OFC 32-32N	2	50.80	2	45.97	2-1/8	73.03	3	76.20	67.56	62.73	62.26	101.60

Connects metric tube to female NPT thread

Untitled Document

Part No.	Tube O.D D	T NPT	E Min.	Width across flat		A	B	l	L
Part No.	Tube O.D D	T NPT	E Min.	h	H	A	B	l	L
OFC 3M-2N	3	1/8	2.4	14	12	12.9	15.3	22.1	28.7
OFC 3M-4N	3	1/4	2.4	19	12	12.9	15.3	26.9	33.5
OFC 4M-2N	4	1/8	2.4	14	12	13.7	16.1	23.1	29.7
OFC 6M-2N	6	1/8	4.8	14	14	15.3	17.7	23.9	31.3
OFC 6M-4N	6	1/4	4.8	19	14	15.3	17.7	28.4	35.8
OFC 6M-6N	6	3/8	4.8	22	14	15.3	17.7	29.5	36.9
OFC 6M-8N	6	1/2	4.8	27	14	15.3	17.7	35.1	42.5
OFC 8M-2N	8	1/8	6.4	15	16	16.2	18.6	24.6	32.1
OFC 8M-4N	8	1/4	6.4	19	16	16.2	18.6	29.5	37.0
OFC 8M-6N	8	3/8	6.4	22	16	16.2	18.6	30.2	37.7
OFC 8M-8N	8	1/2	6.4	27	16	16.2	18.6	35.8	43.3
OFC 10M-2N	10	1/8	7.9	18	19	17.2	19.5	25.4	33.0
OFC 10M-4N	10	1/4	7.9	19	19	17.2	19.5	30.2	37.8
OFC 10M-6N	10	3/8	7.9	22	19	17.2	19.5	31.0	38.6
OFC 10M-8N	10	1/2	7.9	27	19	17.2	19.5	36.6	44.2
OFC 12M-2N	12	1/8	8.3	22	22	22.8	22.0	28.4	38.5
OFC 12M-4N	12	1/4	9.5	22	22	22.8	22.0	30.2	40.3
OFC 12M-6N	12	3/8	9.5	22	22	22.8	22.0	31.0	41.1
OFC 12M-8N	12	1/2	9.5	27	22	22.8	22.0	36.6	46.7
OFC 12M-12N	12	3/4	9.5	35	22	22.8	22.0	38.9	49.0
OFC 15M-8N	15	1/2	11.9	27	25	24.4	22.0	36.6	46.7
OFC 16M-8N	16	1/2	12.7	27	25	24.4	22.0	36.8	46.9
OFC 20M-8N	20	1/2	15.9	30	32	26.0	22.0	37.8	47.9
OFC 20M-12N	20	3/4	15.9	35	32	26.0	22.0	39.6	49.7
OFC 22M-12N	22	3/4	18.3	35	32	26.0	22.0	39.6	49.7
OFC 22M-16N	22	1	18.3	41	32	26.0	22.0	47.8	57.9
OFC 25M-12N	25	3/4	21.8	35	38	31.3	26.5	41.1	53.4
OFC 25M-16N	25	1	21.8	41	38	31.3	26.5	50.0	62.3
