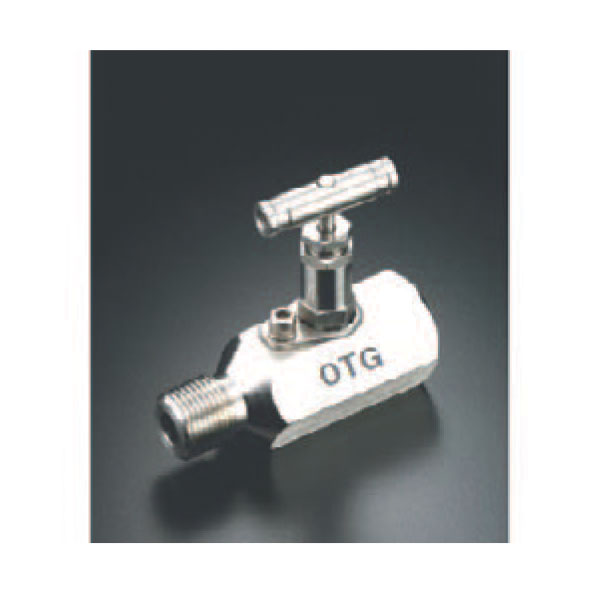

OGV Series
Gauge Valves
- Stainless Steel construction
- For working pressure up to 6000psig (413bar) @ 100°F(37°C).
Features
■ Nonrotating stem tip design.
■ 1/2in. and 3/4in. male to 1/2in. NPT female end connections.
■ 1/2in. female gange ports standard.
■ Schedule 160 pipe wall or heavier on valve inlet fitting for strenght.
■ Bonnet lock plate standard

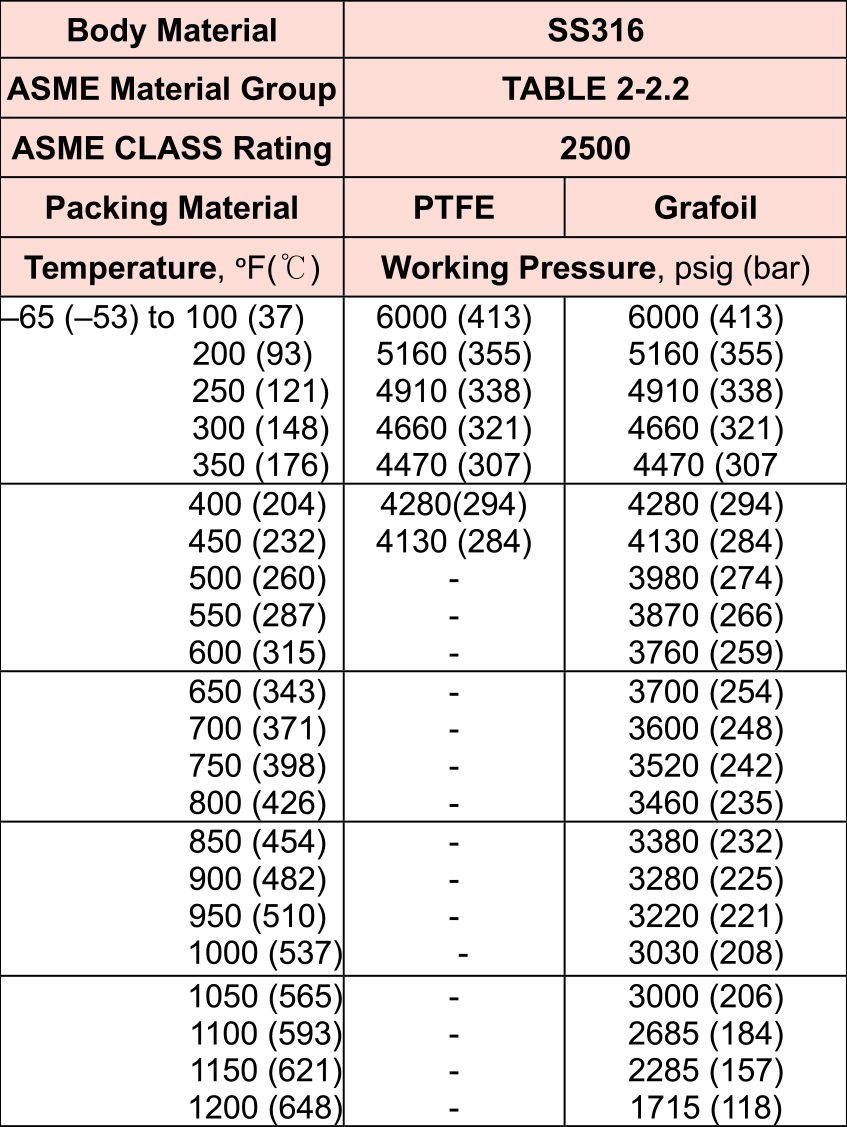

Pressure-Temperature Ratings

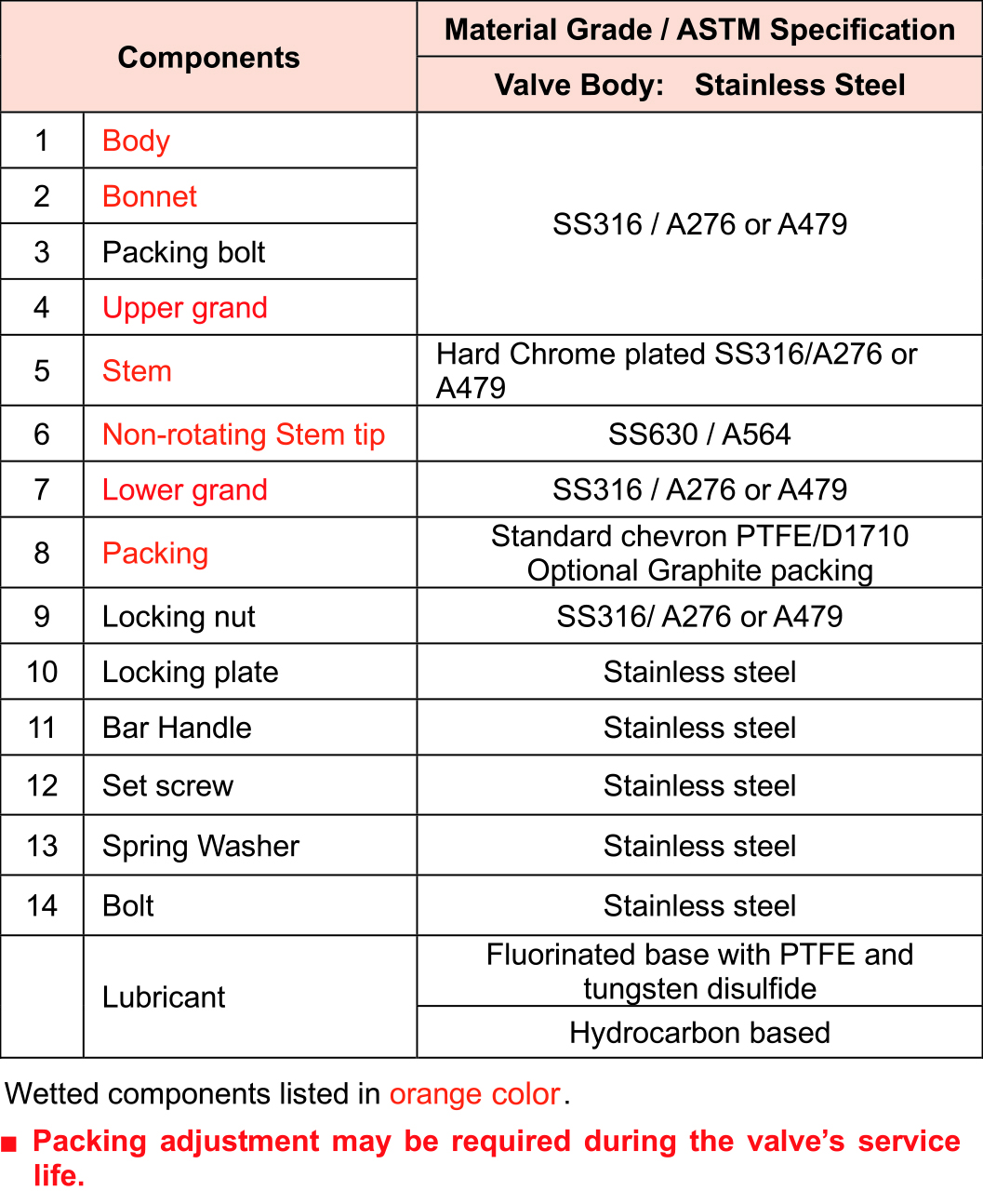

Materials of Construction
Factory Test
- Every valve is factory tested with Nitrogen@1000psig(69bar) for leakage at the seat to a maximum allowable leak of 0.1 scc/min.
- Shell testing is performed to a requirement of no detectable leakage with a liquid leak detector.
Cleaning and Packaging
- Every valve is cleaned and packaged in accordance with OTG-LOK standard cleaning and packaging procedures.

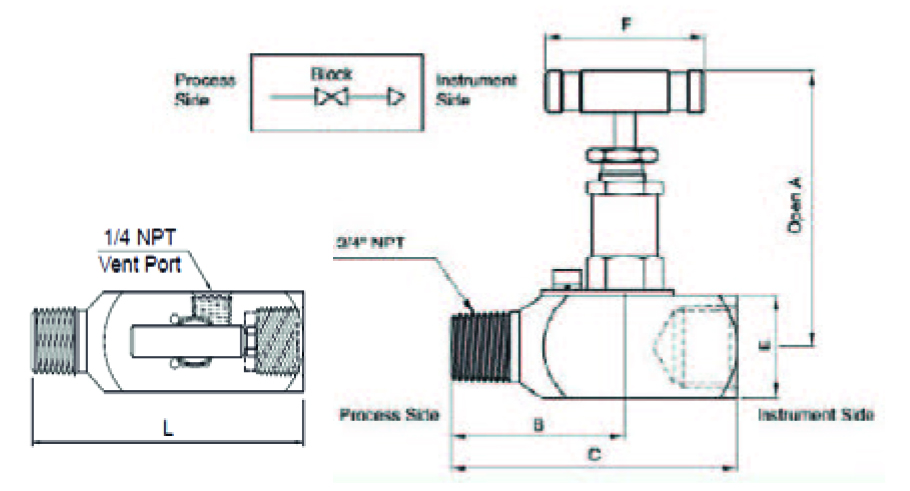

Gauge Valves- OGV
Gauge Valves- OGRV

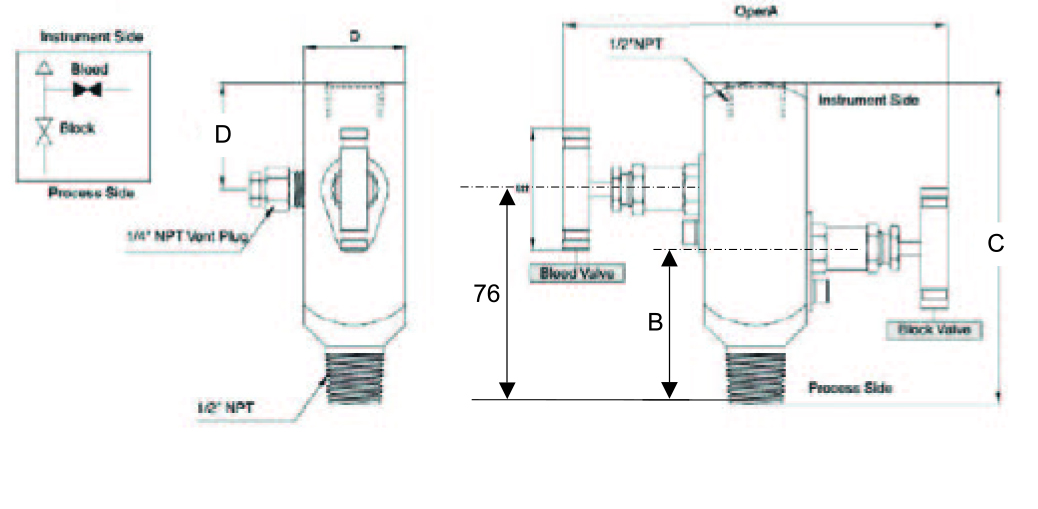

Extended Gauge Root Valves- OGV

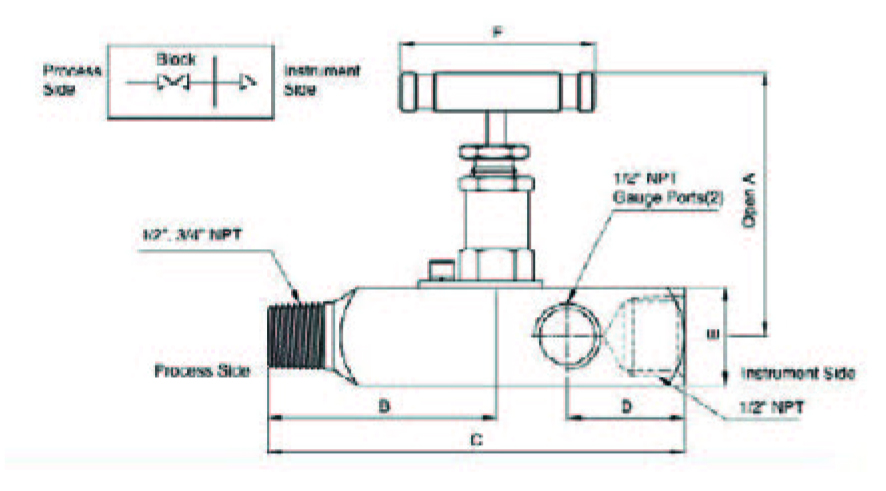

Gauge 2-Valves- OGV2

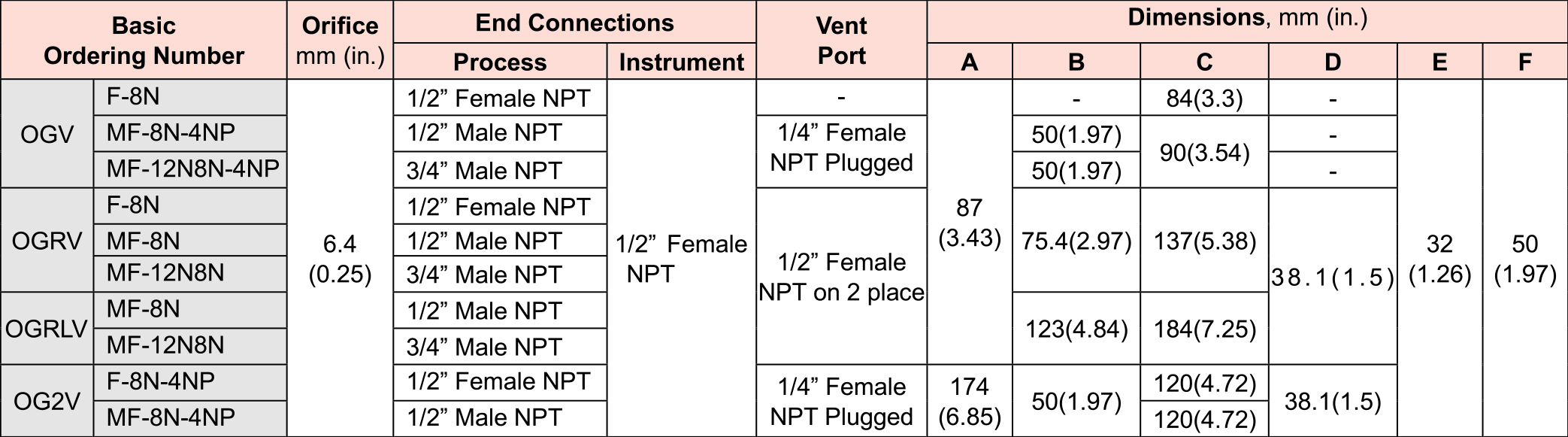

Table of Dimensions

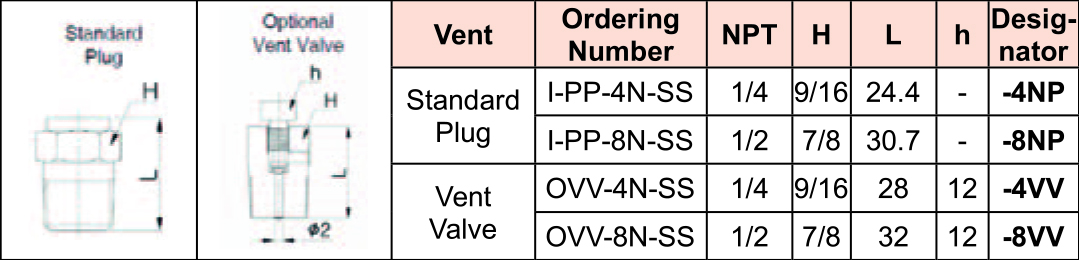

Ordering Information
Dimensions are for reference only and are subjedt to change.

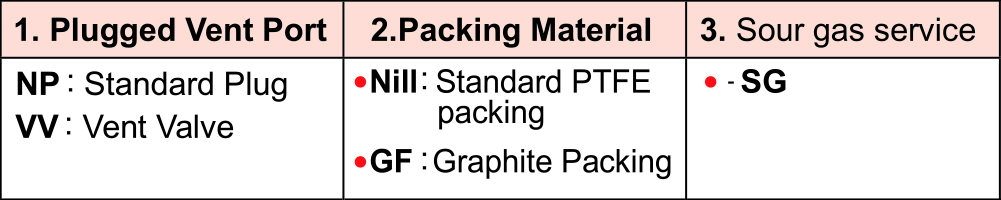

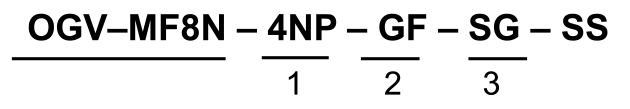

Select a basic ordering number, and applicable options.
Sour Gas Service
Wetted components including stem and lower gland are selected in accordance with NACE MR175/ISO 15156-2/3 or NACE MR0103 depending on the application. To order, add "SG" to the valve ordering number.
SAFETY in VALVE SELETION
The system design, application must be taken into consideration to ensure optimal performance and safety.
Selections of valve function and rating, proper installation, material compatibility, operation and maintenance of these valve are the responsibility of the system designer and the user.
OTG accepts no liability for any improper selection, installation, operation or maintenance.
