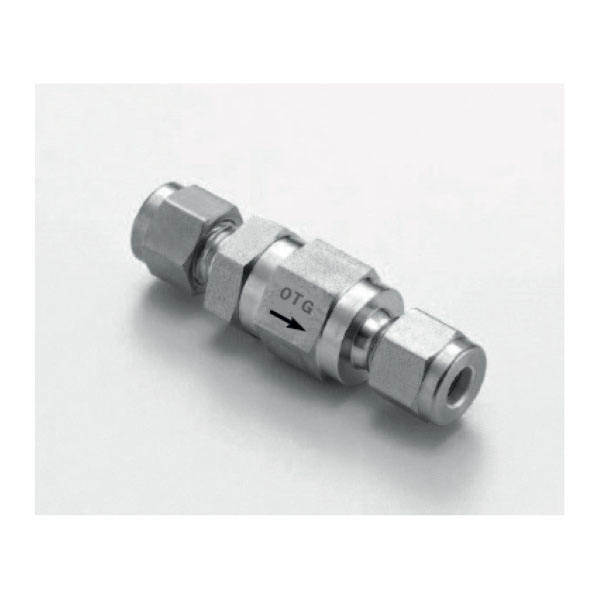

OHCV6 Series
High Pressure Check Valves
Features
■ Pressure rating up to 6000psi (413bar) @ 70°F(21°C)
■ Temperature rating up to 375°F (191°C) with standard FKM O-ring.
■ S316 Stainless steel body as standard.
■ Suitable for gas and liquids.
■ Cracking pressures inlude: 1/3, 1, 3, 10, 25 psi.

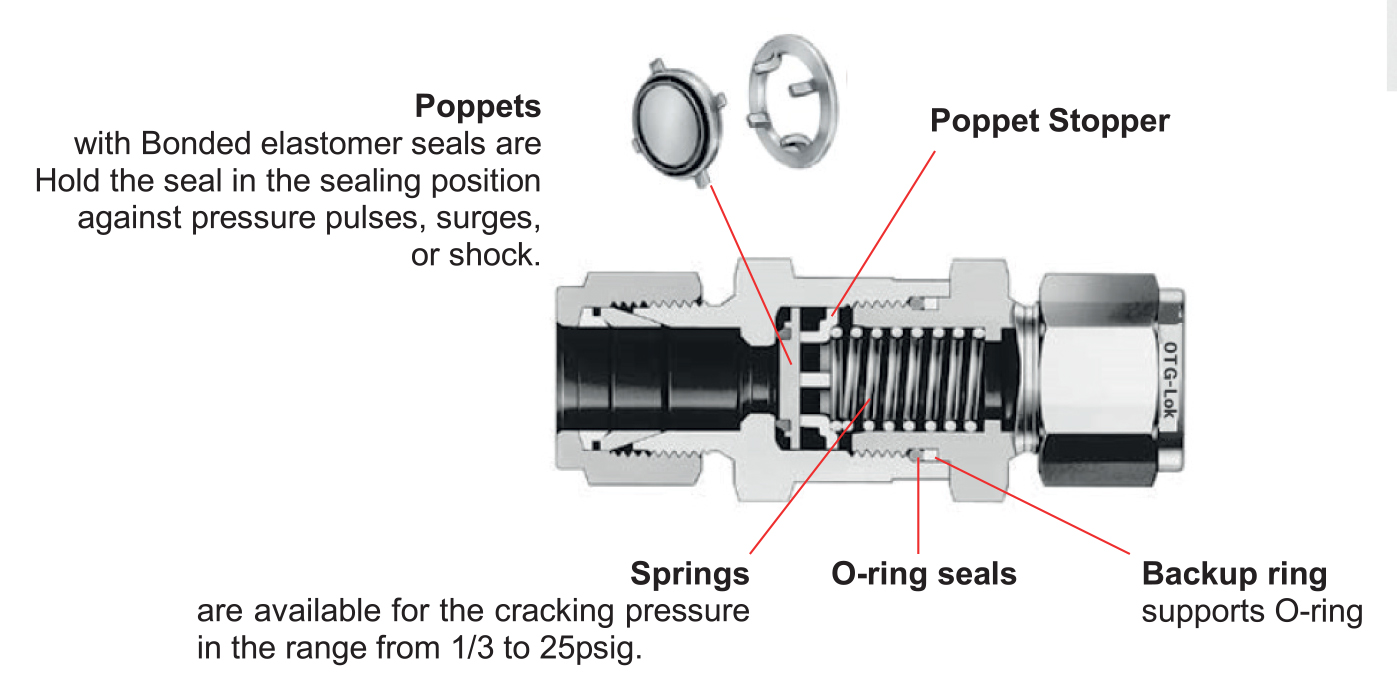

Design

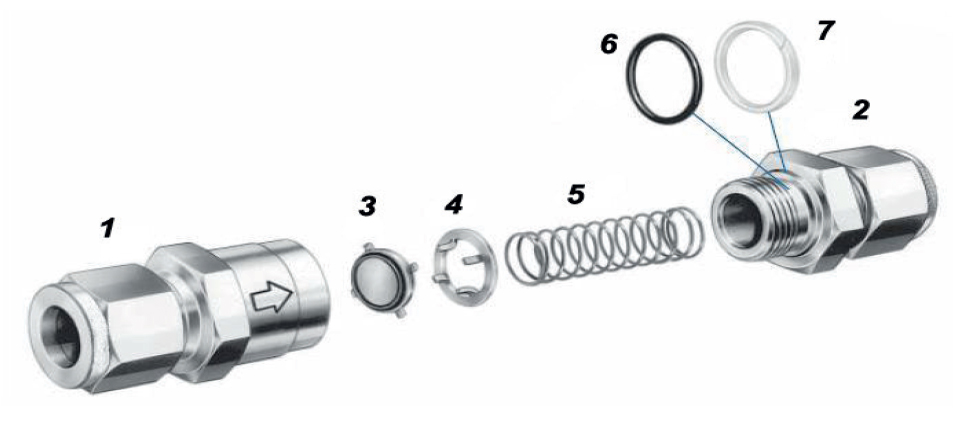

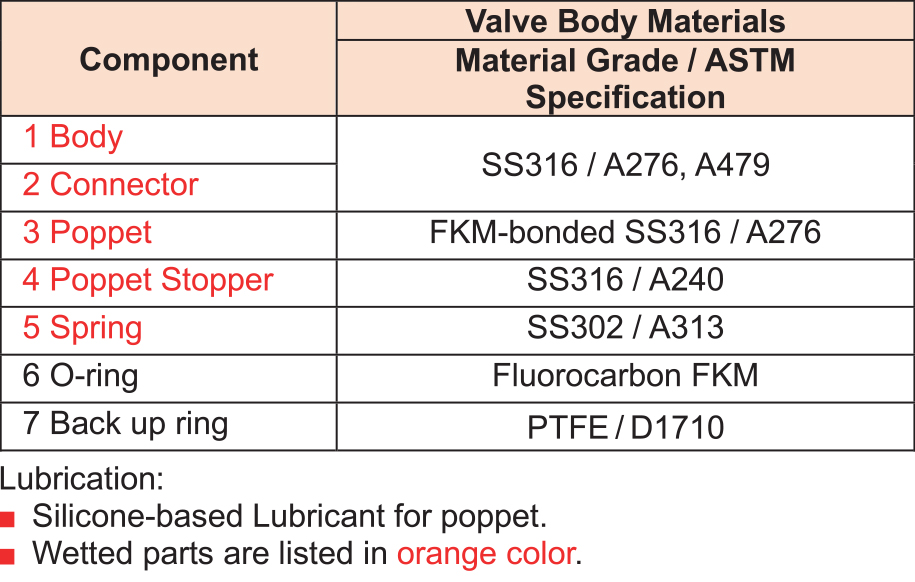

Materials of Construction

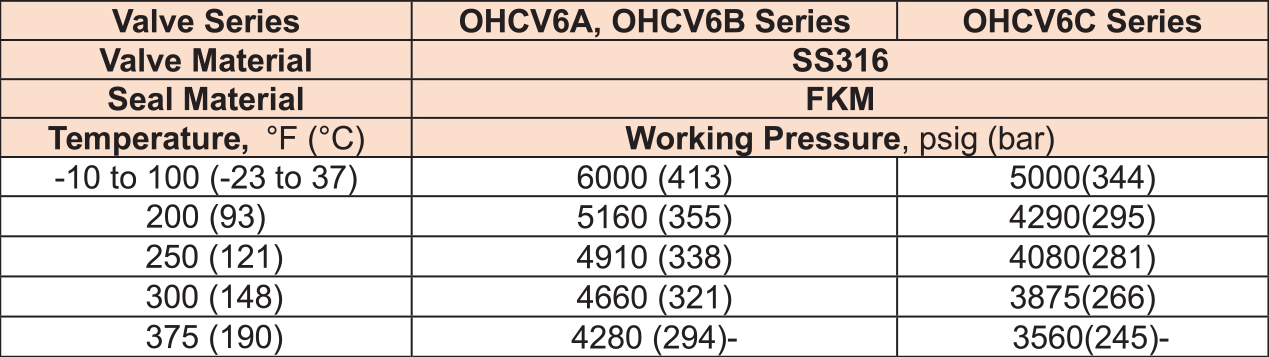

Pressure-Temperature Ratings

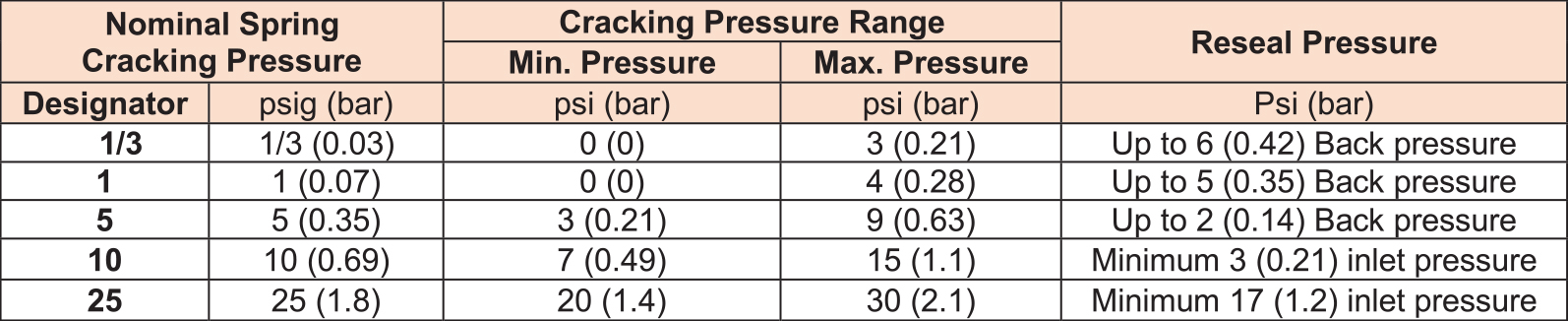

Spring Designator / Cracking and Reseal Pressure at @ 70°F(21°C)

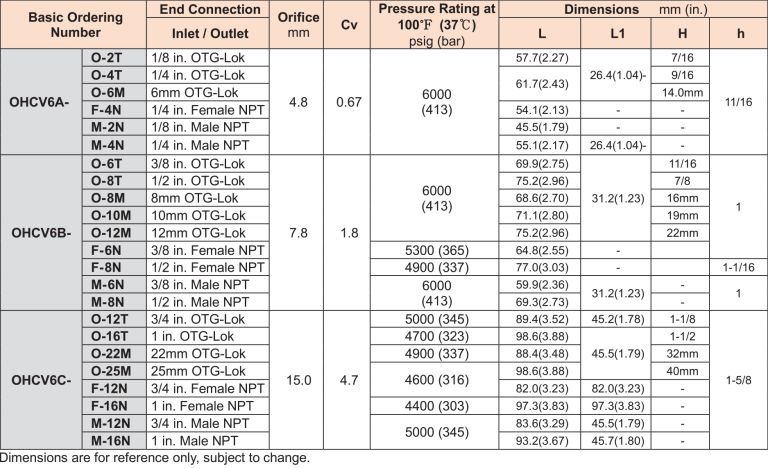

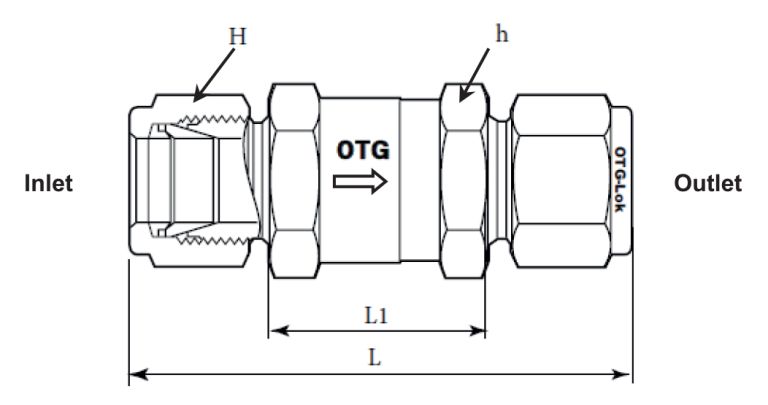

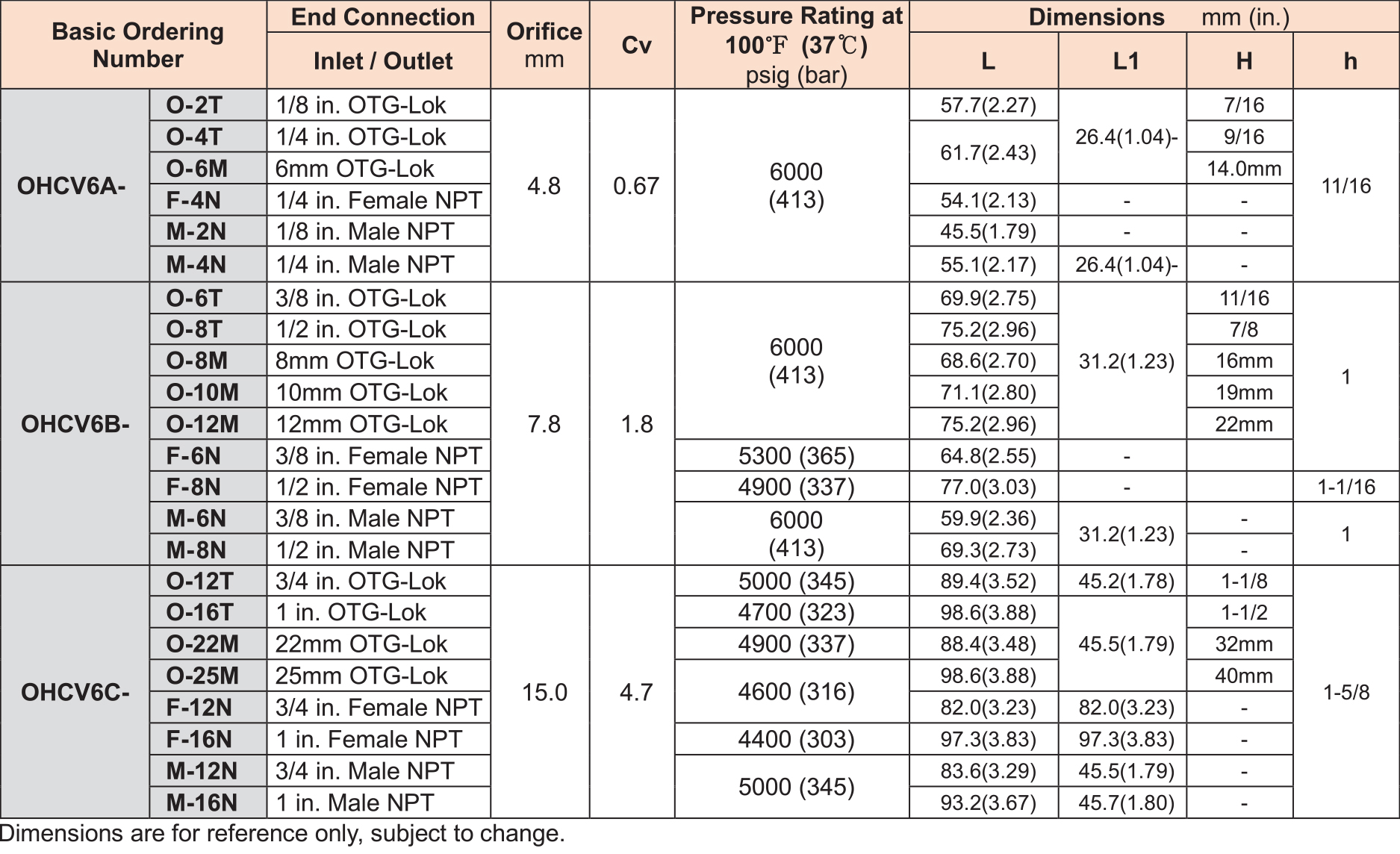

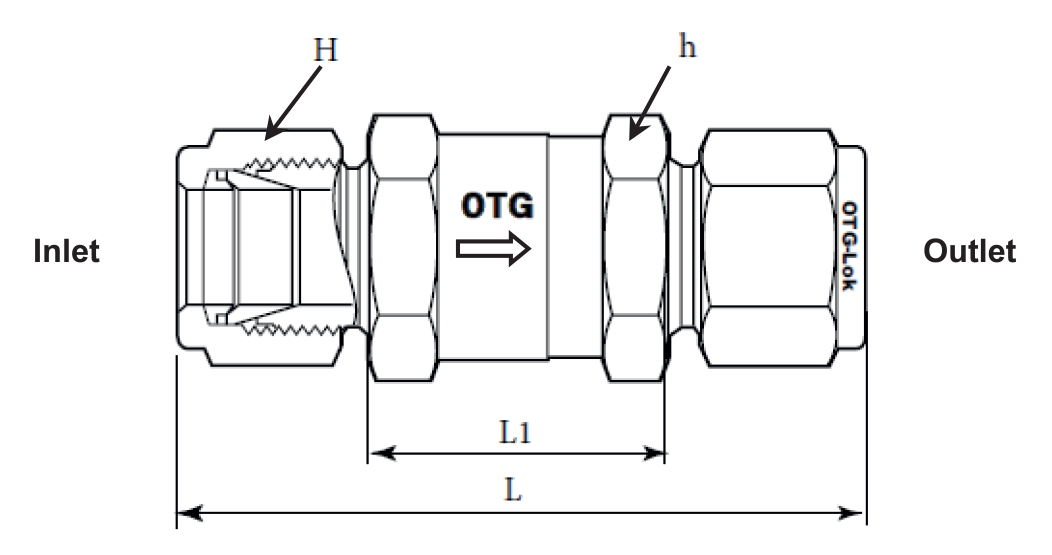

Ordering Information and Dimensions
How to Order
Select a valve basic ordering number. Select an applicable spring designator and add it to the basic ordering number:
Example:
OHCV6A-O-4T-
OHCV6A-O-4T-1/3-.
OHCV6A-O-4T-1/3-1/3-SS
Follow the steps below.
Step 1. Select a valve basic ordering number.
Step 2. Select an applicable spring designator and add it to the baslc orderingnumber:
Step 3. Suffix an applicable body material designator to the ordering number:
Body Material: SS316 - SS
