OMA-U

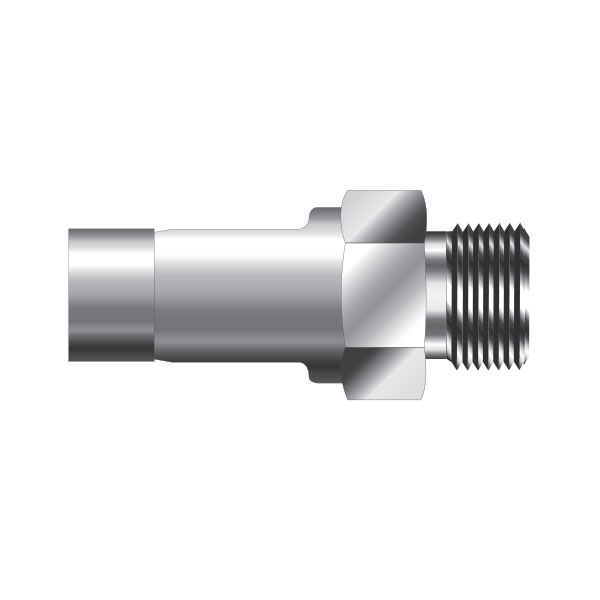

Male SAE Tube Adapter
Connects fractional OTG-LOK tube fitting port to SAE staight thread boss

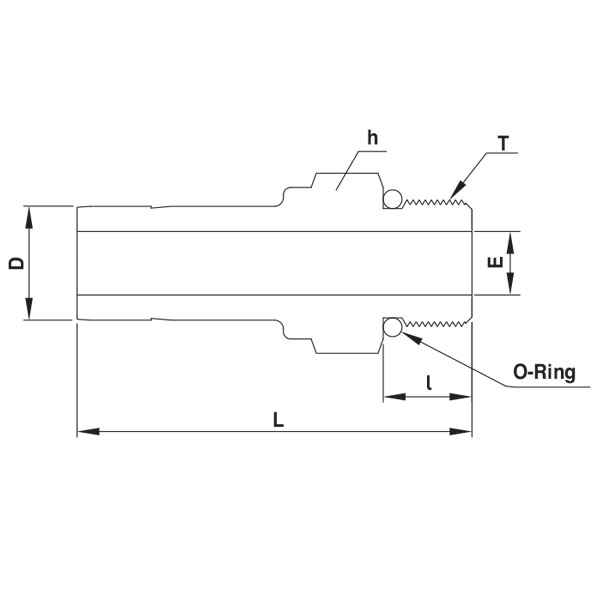

| Part No. |
Tube O.D D |
T (U) |
E Min. |
Width across flat | l | L | O-Ring Uniform Size Number |
||||
| in. | mm | h | |||||||||
| in. | mm | ||||||||||
| OMA 2-2U | 1/8 | 3.17 | 5/16-24 | 2.03 | 7/16 | 11.11 | 7.62 | 30.48 | -902 | ||
| OMA 4-4U | 1/4 | 6.35 | 7/16-20 | 4.31 | 9/16 | 14.28 | 9.14 | 35.30 | -904 | ||
| OMA 6-4U | 3/8 | 9.52 | 7/16-20 | 5.08 | 9/16 | 14.28 | 9.14 | 37.08 | -904 | ||
| OMA 6-6U | 3/8 | 9.52 | 9/16-18 | 6.85 | 11/16 | 17.46 | 9.90 | 38.60 | -906 | ||
| OMA 6-8U | 3/8 | 9.52 | 3/4-16 | 6.85 | 7/8 | 22.22 | 11.17 | 40.64 | -908 | ||
| OMA 8-6U | 1/2 | 12.70 | 9/16-18 | 7.11 | 11/16 | 17.46 | 9.90 | 44.20 | -906 | ||
| OMA 8-8U | 1/2 | 12.70 | 3/4-16 | 9.4 | 7/8 | 22.22 | 11.17 | 46.22 | -908 | ||
| OMA 12-12U | 3/4 | 19.05 | 1-1/16-12 | 14.7 | 1-1/4 | 31.75 | 14.98 | 53.35 | -912 | ||
| OMA 16-16U | 1 | 25.40 | 1-5/16-12 | 20.31 | 1-1/2 | 38.1 | 14.98 | 61.21 | -916 | ||
