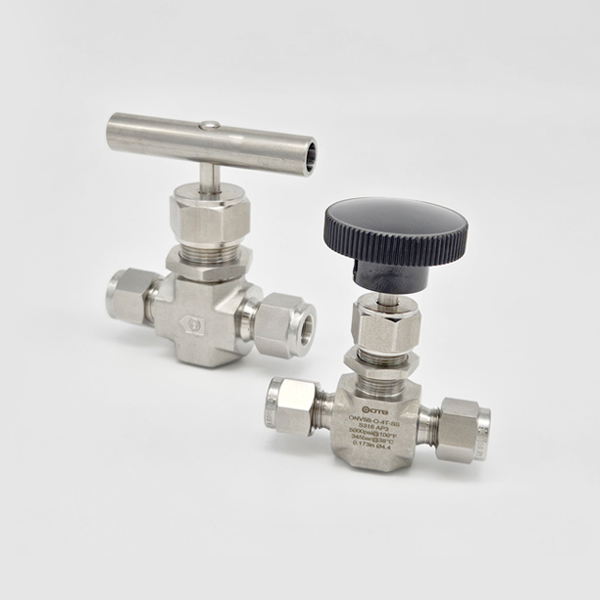

ONV5
Hex Integral-Bonnet Needle Valves
Working Pressure: 5,000(345bar)@100°F (37°C)
Features
Stem Designs
■ Vee-all series
■ Soft-seat-all series
■ Regulating series-ONV1&2, ONV3, ONV4
Flow Patterns
■ 2-Way Straight Pattern

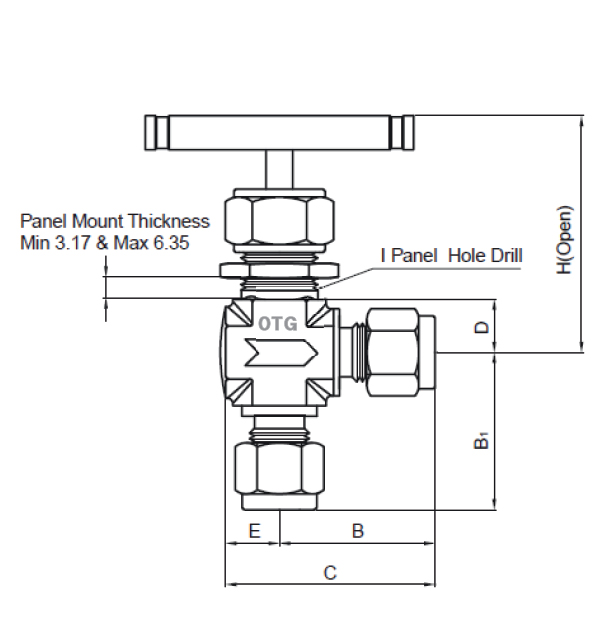

■ 2-Way Angle Pattern
■ 2-Way Flow Pattern

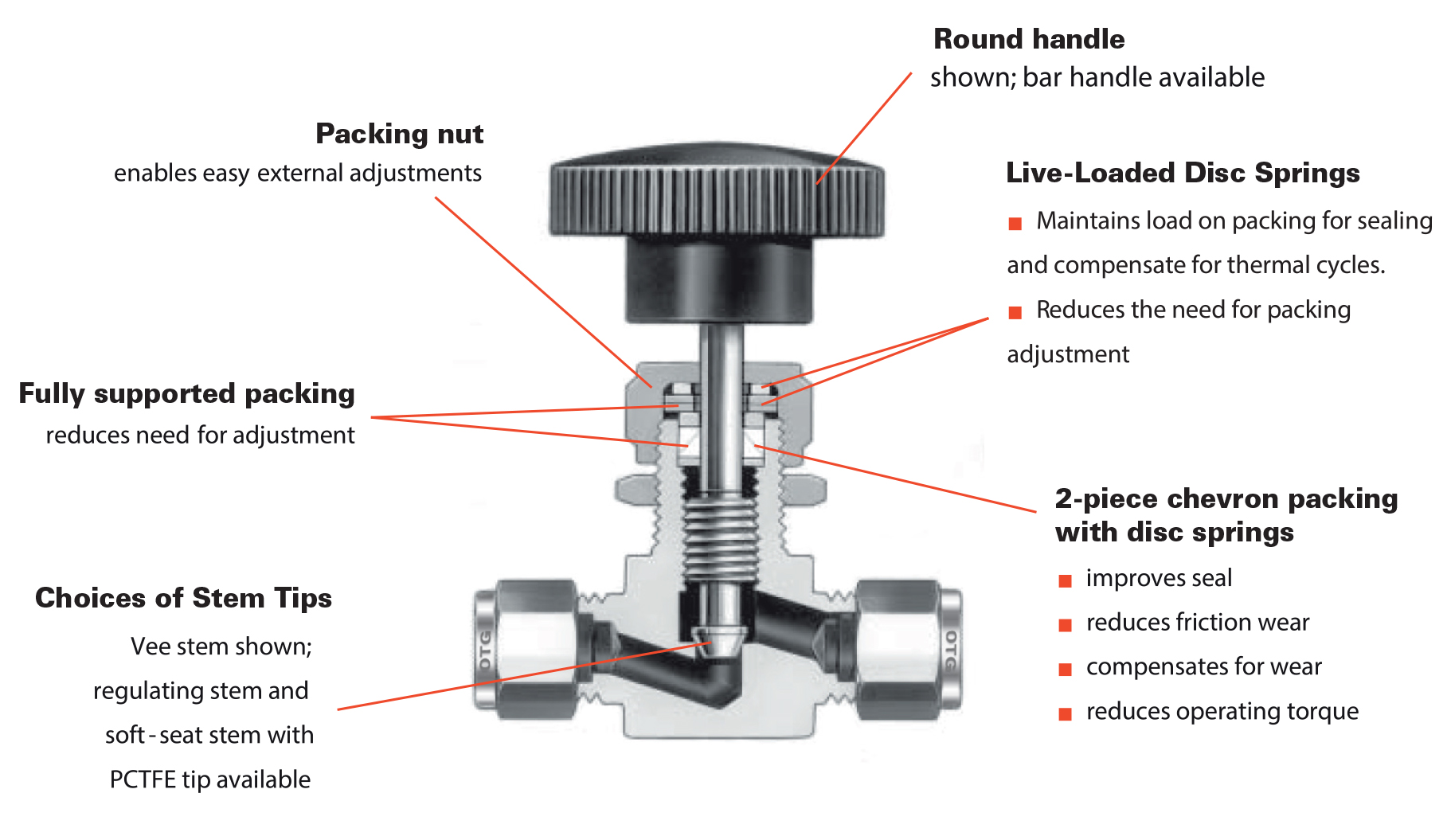

Live-Loaded Packing System

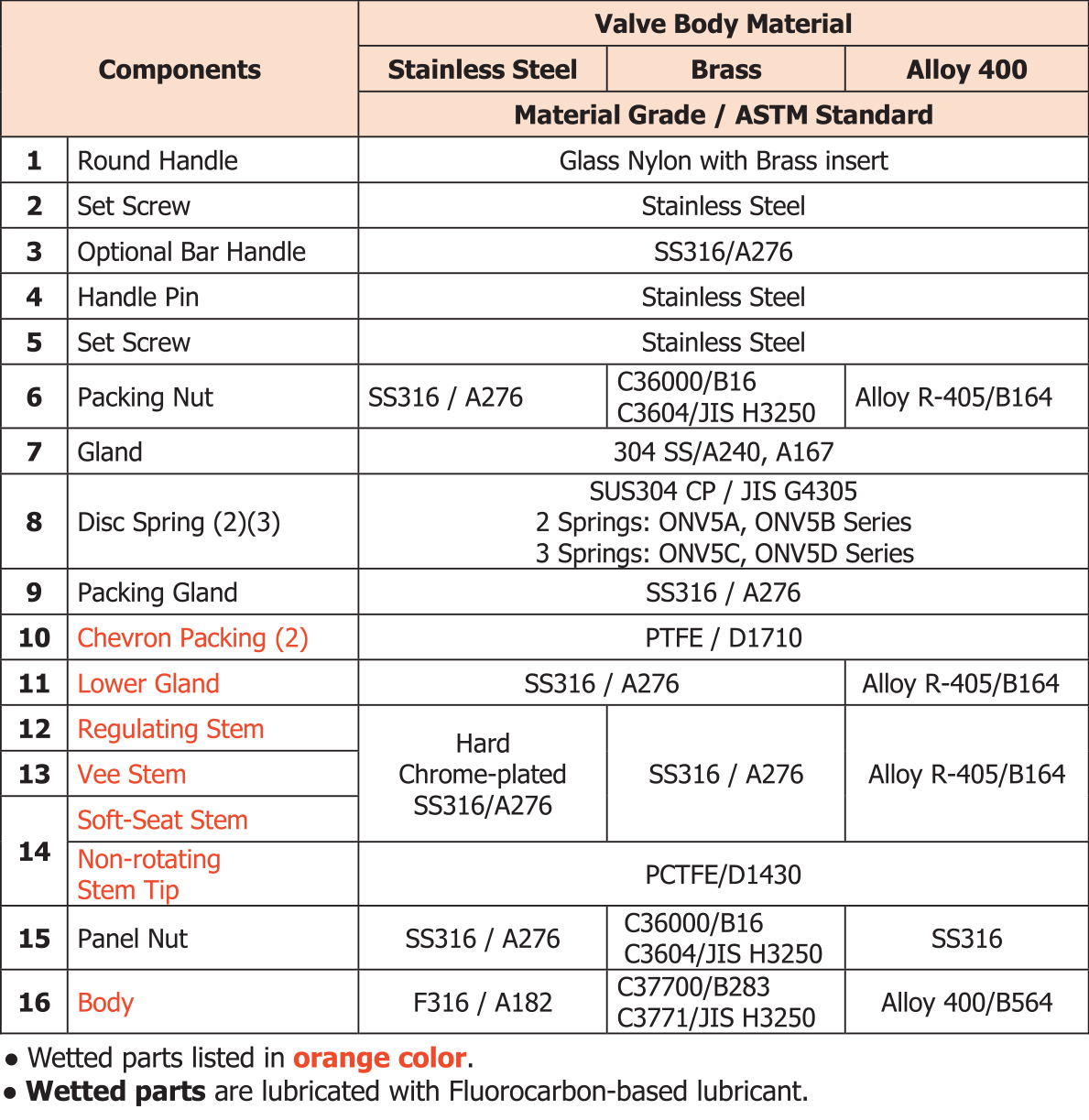

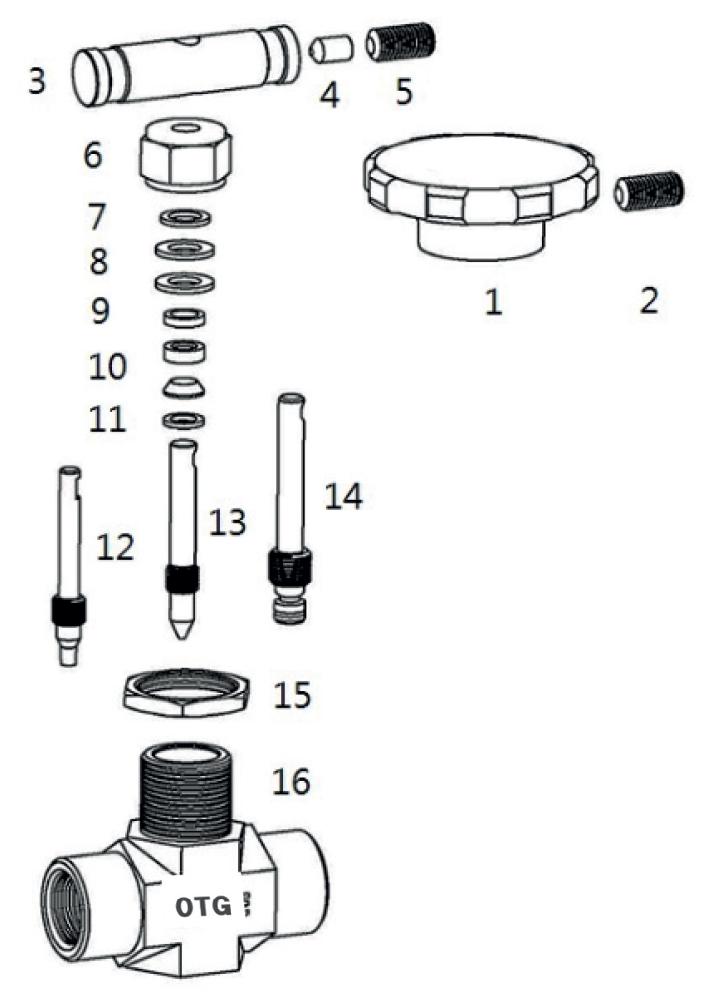

Materials of Construction

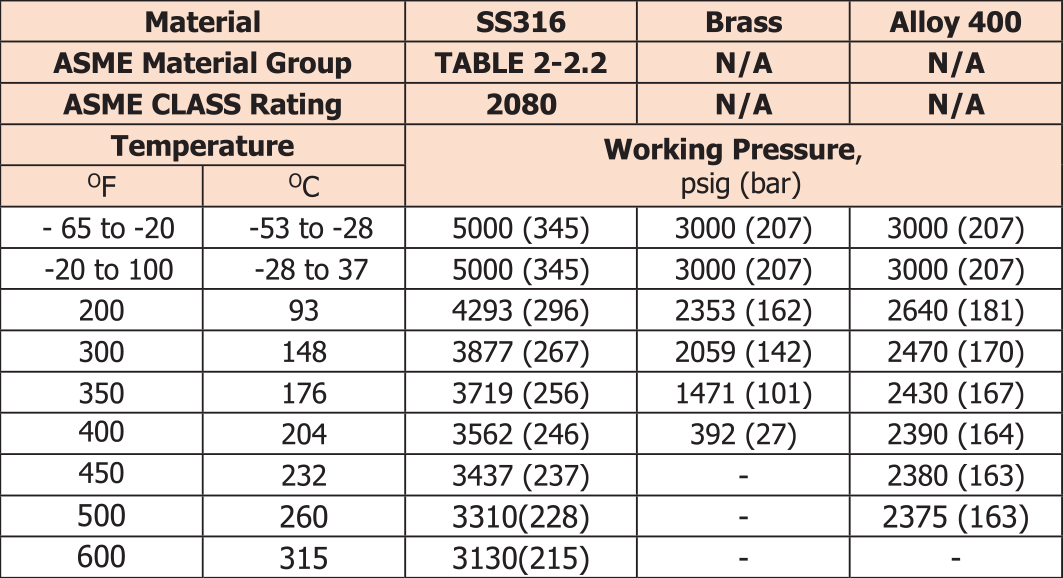

Materials of Construction
• Valve with PCTFE Sofr-Seat Stem reduce the maximum temperature rating to 200°F(93°C)
• The standard PTFE packing valve with Regulating or Vee Stem has no change in the temperature rating.
• 600°F (315°C) max with PEEK packing
Flow Data at 100°F (37°C)

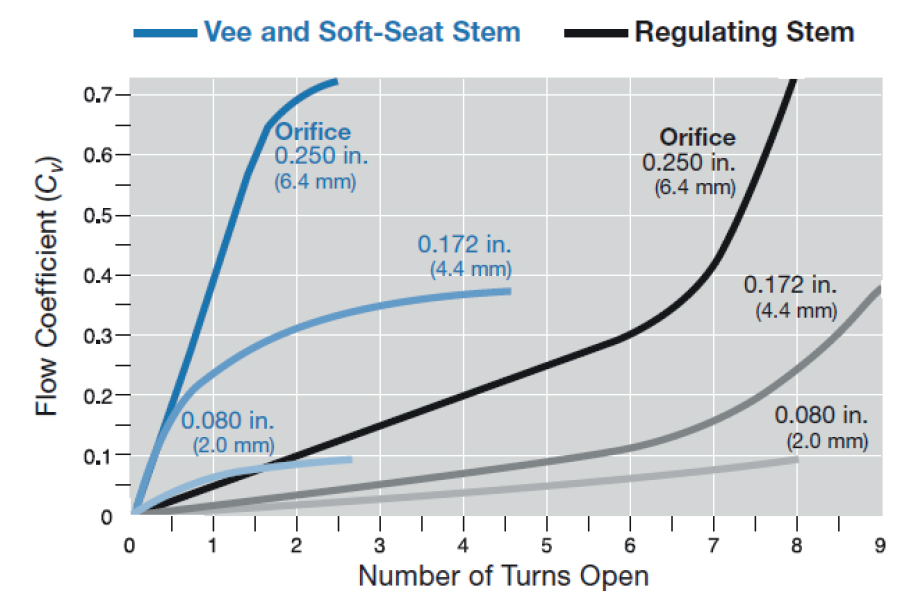

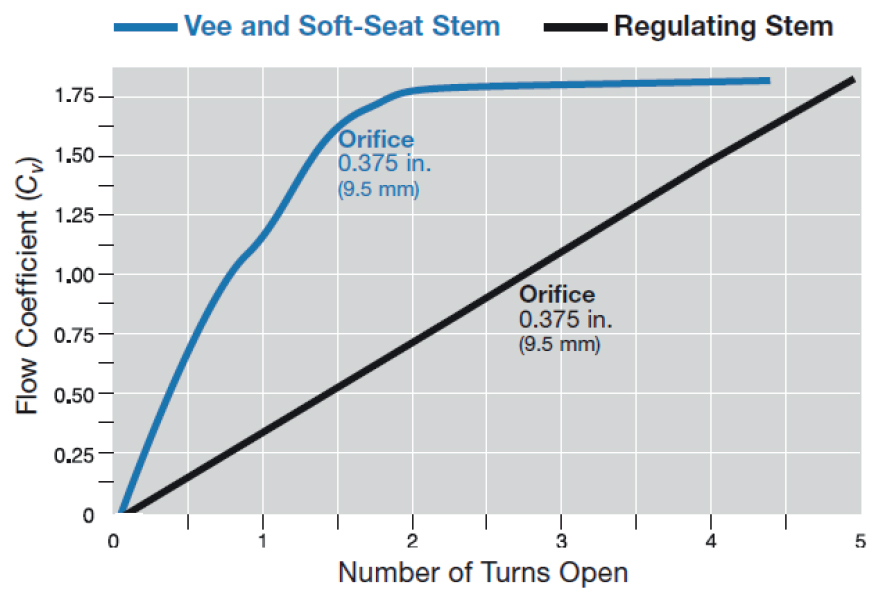

Flow Coefficient at Turns Open
ONV5A, ONV5B and ONV5C Series
ONV5D Series

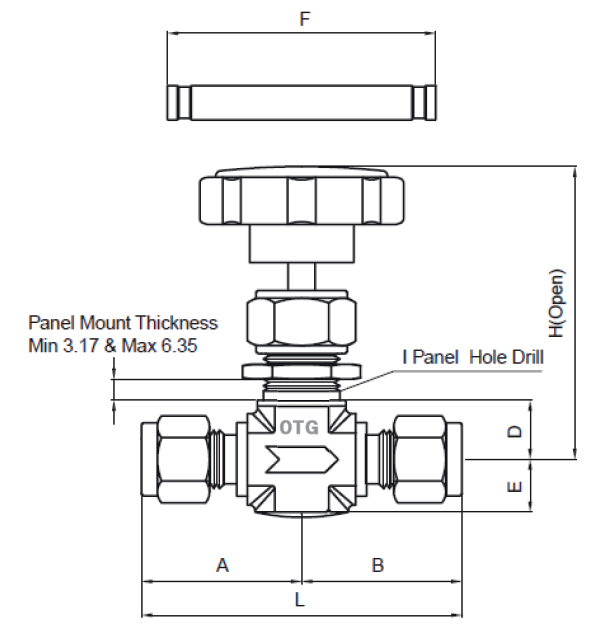

Straight Pattern

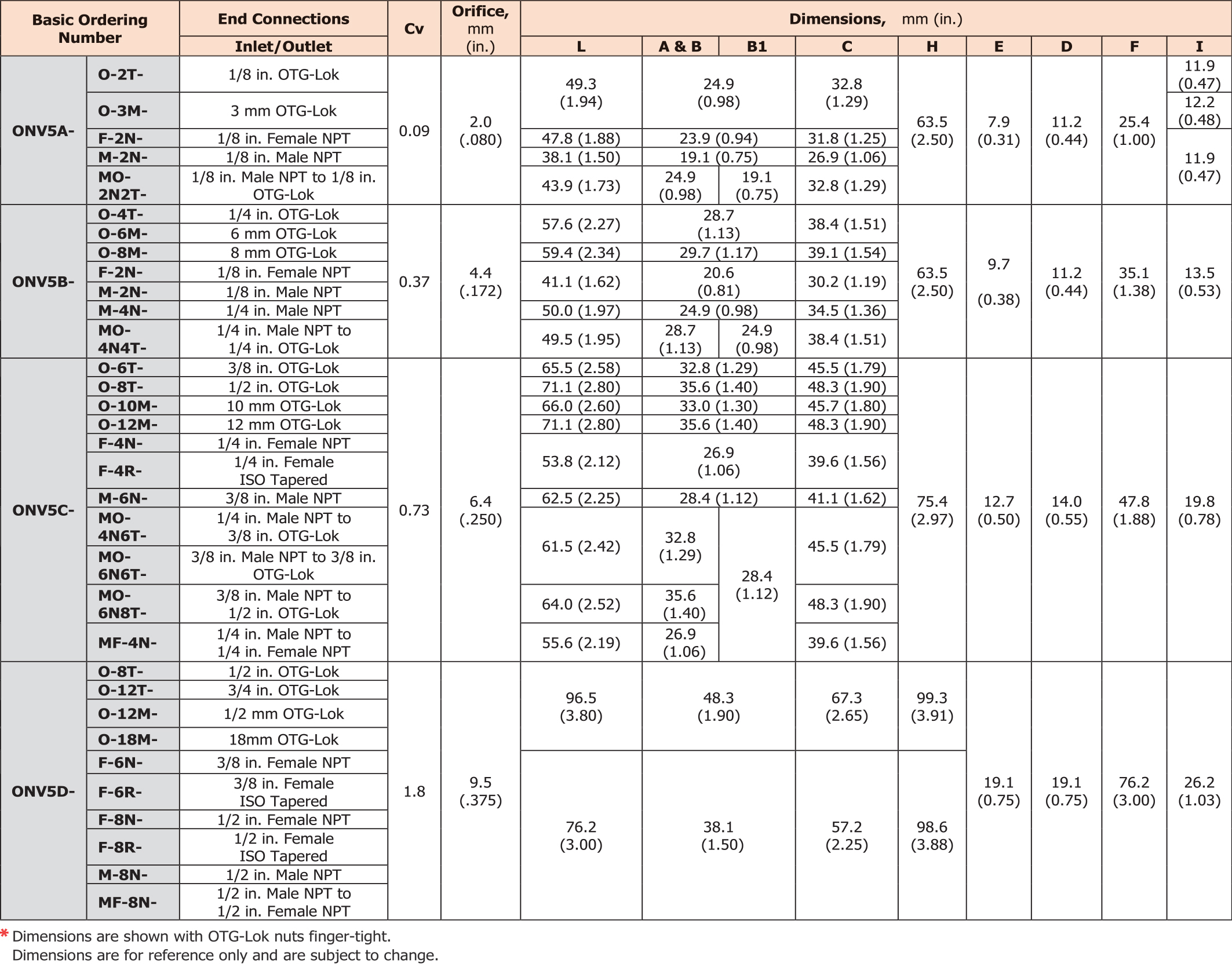

Ordering Information and Dimensions

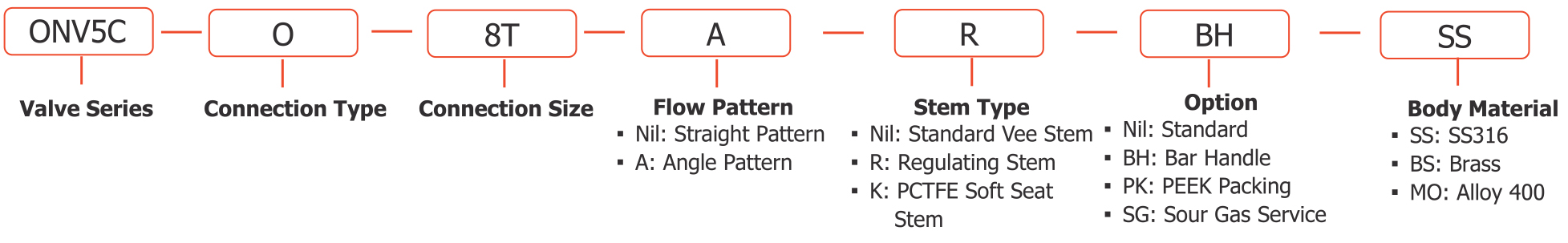

Ordering Information
Select applicable valve pattern, options and material form the designators losted below.
