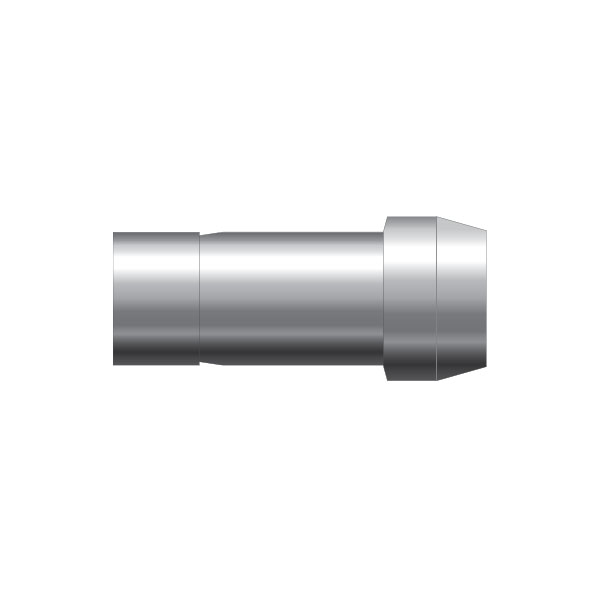

OPC
Port Connector
Connects fractional OTG-LOK tube fitting ports

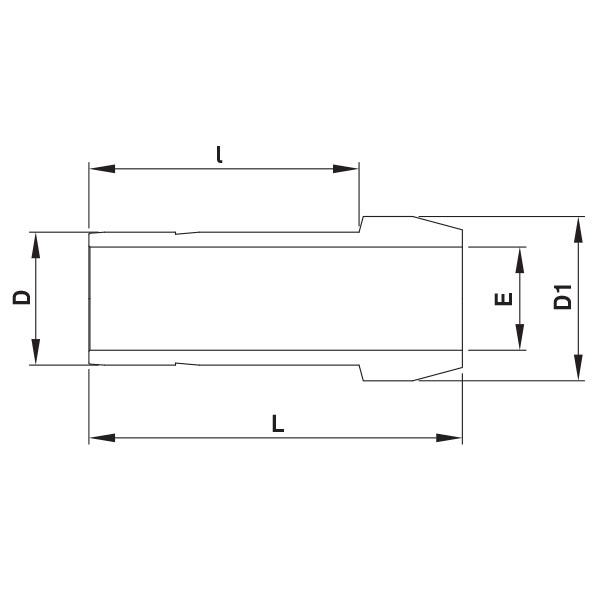

| Part No. |
Tube O.D D |
E Min. |
D1 | I | L | |
| in. | mm | |||||
| OPC-1 | 1/16 | 1.59 | 1.00 | 3.30 | 10.66 | 13.72 |
| OPC-2 | 1/8 | 3.17 | 1.77 | 6.09 | 15.75 | 22.35 |
| OPC-4 | 1/4 | 6.35 | 4.57 | 9.39 | 18.79 | 24.64 |
| OPC-5 | 5/16 | 7.93 | 6.35 | 10.92 | 20.06 | 25.90 |
| OPC-6 | 3/8 | 9.52 | 7.11 | 12.70 | 20.32 | 26.16 |
| OPC-8 | 1/2 | 12.70 | 9.90 | 15.74 | 25.90 | 35.81 |
| OPC-12 | 3/4 | 19.05 | 14.98 | 22.09 | 27.68 | 37.33 |
| OPC-16 | 1 | 25.40 | 20.06 | 28.44 | 34.54 | 48.00 |
Connects metri OTG-LOK tube fitting ports
| Part No. |
Tube O.D D |
E Min. |
D1 | I | L |
| OPC-3M | 3 | 2.1 | 6.0 | 15.70 | 22.20 |
| OPC-4M | 4 | 2.2 | 7.0 | 16.67 | 25.81 |
| OPC-6M | 6 | 4.4 | 9.0 | 18.70 | 24.60 |
| OPC-8M | 8 | 6.2 | 11.0 | 20.00 | 25.90 |
| OPC-10M | 10 | 8.2 | 13.1 | 20.20 | 26.10 |
| OPC-12M | 12 | 9.1 | 15.0 | 26.00 | 35.80 |
| OPC-15M | 15 | 12.7 | 19.0 | 27.78 | 37.40 |
| OPC-16M | 16 | 12.7 | 19.0 | 27.60 | 37.40 |
| OPC-18M | 18 | 13.9 | 21.0 | 27.91 | 37.40 |
| OPC-20M | 20 | 15.1 | 23.0 | 29.20 | 38.90 |
| OPC-22M | 22 | 17.9 | 24.97 | 29.30 | 39.20 |
| OPC-25M | 25 | 19.8 | 28.0 | 34.50 | 48.00 |
| OPC-28M | 28 | 23.8 | 34.3 | 48.30 | 63.50 |
| OPC-32M | 32 | 27.4 | 39.5 | 52.40 | 69.70 |
| OPC-38M | 38 | 33.3 | 47.1 | 61.40 | 81.90 |
