I-PHB

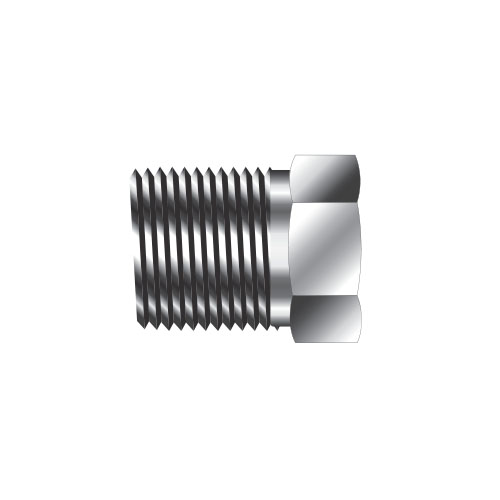

Reducing Hex Bushing(Male NPT to reduced famale NPT)

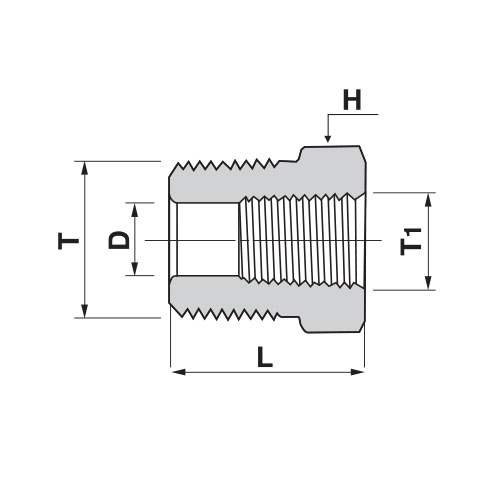

| Part Number | Male NPT Size T |
Female NPT Size T1 |
L | D | H Wrench Flat |
Pressure Rasting, psig(bar) | |
| 316SS / Carbon Steel | Brass | ||||||
| I-PHB-4-2N | 1/4 | 1/8 | 26.7 | 7.1 | 14.2 | 6,500(447) | 3,300(227) |
| I-PHB-6-2N | 3/8 | 1/8 | 21.8 | 8.5 | 17.2 | 9,200(633) | 4,700(323) |
| I-PHB-6-4N | 3/8 | 1/4 | 30.0 | 9.6 | 19.05 | 6,600(454) | 3,300(227) |
| I-PHB-8-2 | 1/2 | 1/8 | 27.4 | 8.5 | 22.2 | 12,200(840) | 6,200(427) |
| I-PHB-8-4N | 1/2 | 1/4 | 27.4 | 11.7 | 22.2 | 8,300(571) | 4,400(303) |
| I-PHB-8-6N | 1/2 | 3/8 | 35.6 | 11.9 | 22.2 | 5,300(365) | 2,600(179) |
| I-PHB-12-4N | 3/4 | 1/4 | 27.4 | 11.4 | 26.9 | 12,000(826) | 6,000(413) |
| I-PHB-12-6N | 3/4 | 3/8 | 27.4 | 15.0 | 26.9 | 8,200(564) | 4,300(296) |
| I-PHB-12-8N | 3/4 | 1/2 | 41.4 | 15.7 | 26.9 | 4,900(337) | 2,400(165) |
| I-PHB-16-4N | 1 | 1/4 | 34.8 | 11.4 | 34.9 | 14,500(999) | 7,400(509) |
| I-PHB-16-6N | 1 | 3/8 | 34.8 | 15.0 | 34.9 | 11,600(799) | 5,900(406) |
| I-PHB-16-8N | 1 | 1/2 | 34.8 | 18.5 | 34.9 | 8,600(592) | 4,300(296) |
| I-PHB-16-12N | 1 | 3/4 | 47.0 | 22.4 | 34.9 | 5,300(365) | 2,600(179) |
