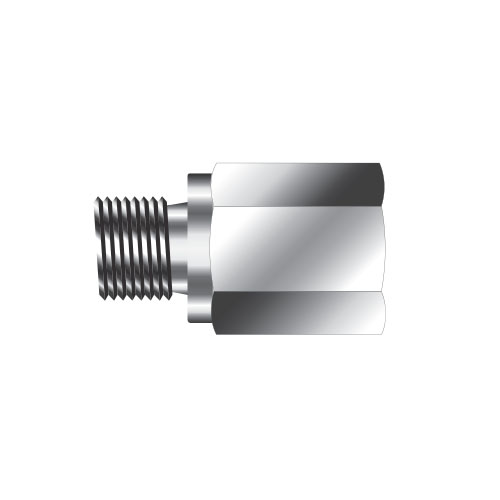

I-PMFA-GN
Adapter(Male ISO paralled to Female NPT)

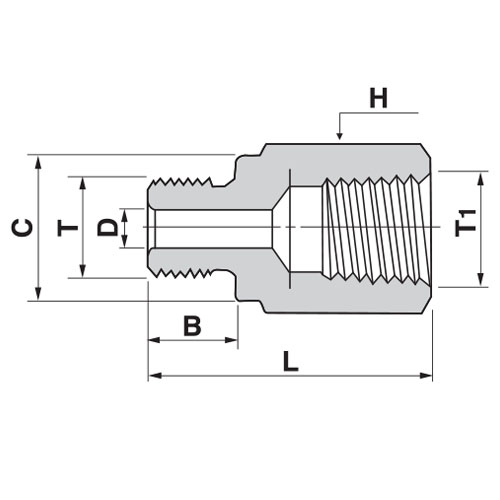

| Part Number | PF Size T |
NPT Size T1 |
L | B | C | D | H Wrench Flat |
| I-PMFA-2GN | 1/8 | 1/8 | 24.9 | 8.1 | 13.7 | 4.1 | 14.2 |
| I-PMFA-4GN | 1/4 | 1/4 | 33.3 | 11.9 | 17.8 | 5.8 | 19.05 |
| I-PMFA-6GN | 3/8 | 3/8 | 35.8 | 11.9 | 21.8 | 7.9 | 22.2 |
| I-PMFA-8GN | 1/2 | 1/2 | 44.2 | 14.0 | 26.1 | 11.9 | 26.9 |
| I-PMFA-12GN | 3/4 | 3/4 | 48.0 | 16.0 | 31.5 | 15.7 | 33.3 |
| I-PMFA-16GN | 1 | 1 | 53.1 | 18.0 | 38.9 | 19.8 | 41.2 |
