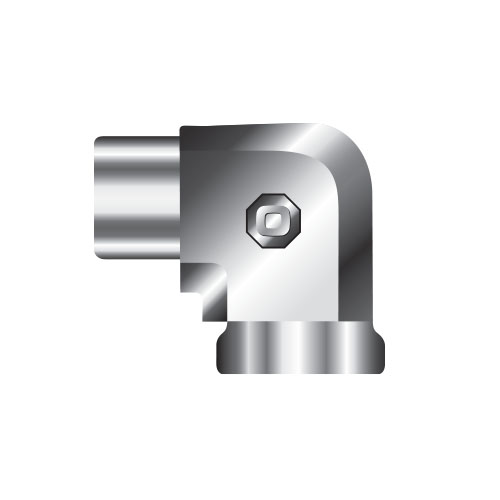

I-PSWFE
Female Elbow

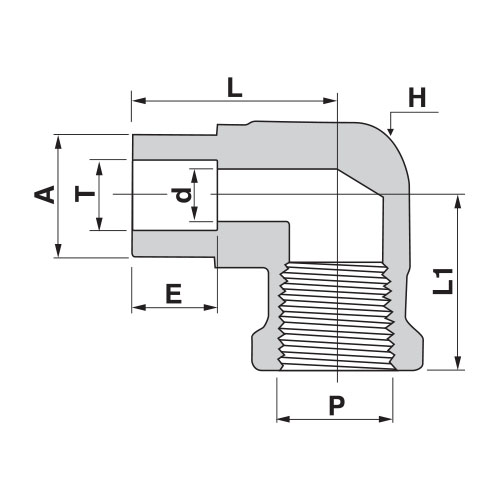

| Part Number | Tube O. D T |
Male pipe size P-NPT |
d | A | E | H Wrench Flat |
L | L1 | Pressure Ratings SS316 | |
| Psig | bar | |||||||||
| I-PSWFE-4T-4N | 1/4 | 1/4 | 4.6 | 12.2 | 7.1 | 17.5 | 22.9 | 29.7 | 6,200 | 427 |
| I-PSWFE-6T-4N | 3/8 | 1/4 | 7.1 | 15.8 | 7.9 | 17.5 | 25.1 | 29.7 | 7,000 | 482 |
| I-PSWFE-6T-8N | 3/8 | 1/2 | 7.1 | 15.8 | 7.9 | 25.4 | 28.7 | 37.0 | 5,400 | 372 |
| I-PSWFE-8T-8N | 1/2 | 1/2 | 10.2 | 18.5 | 9.7 | 25.4 | 30.2 | 37.0 | 5,400 | 372 |
