I-PSWME

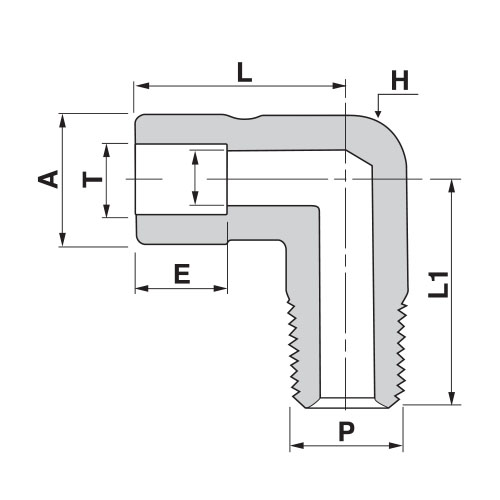

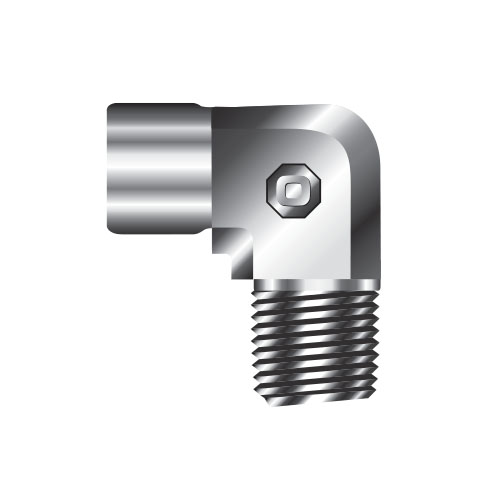

Male Elbow
| Part Number | Tube O. D T |
Male pipe size P-NPT |
d | A | E | H Wrench Flat |
L | L1 | Pressure Ratings SS316 | |
| Psig | bar | |||||||||
| I-PSWME-4T-4N | 1/4 | 1/4 | 4.6 | 15.8 | 7.1 | 12.7 | 20.1 | 24.5 | 7,500 | 516 |
| I-PSWME-6T-4N | 3/8 | 1/4 | 7.1 | 15.8 | 7.9 | 12.7 | 24.1 | 24.5 | 7,500 | 516 |
| I-PSWME-6T-6N | 3/8 | 3/8 | 7.1 | 20.6 | 7.9 | 17.5 | 24.6 | 29.0 | 7,300 | 502 |
| I-PSWME-6T-8N | 3/8 | 1/2 | 7.1 | 23.8 | 7.9 | 20.6 | 25.9 | 34.5 | 7,200 | 496 |
| I-PSWME-8T-8N | 1/2 | 1/2 | 10.2 | 23.8 | 9.7 | 20.6 | 27.4 | 34.5 | 6,200 | 427 |
| I-PSWME-12T-12N | 3/4 | 3/4 | 15.7 | 28.6 | 11.2 | 25.4 | 37.0 | 37.0 | 6,700 | 461 |
