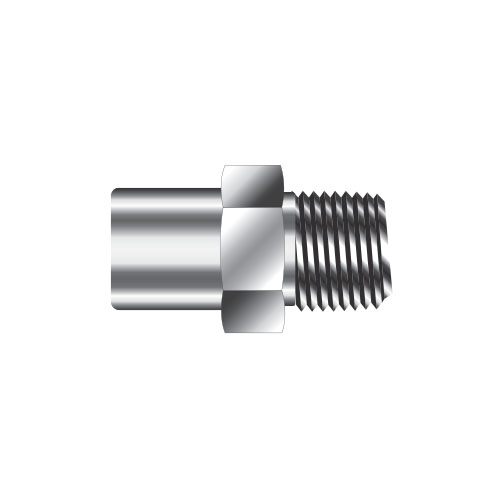

I-PSWMC
Male Connector

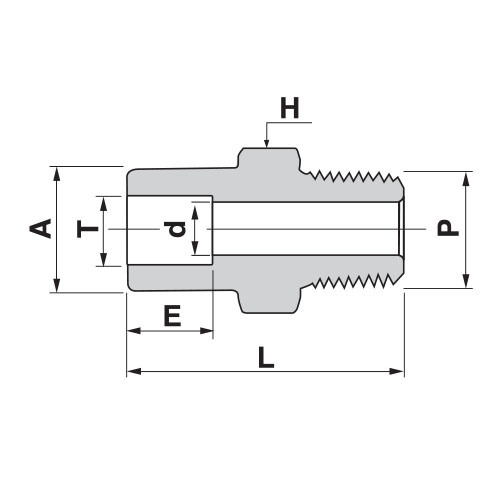

| Part Number | Tube O. D T |
P-NPT | d | A | E | H Wrench Flat |
L | Pressure Ratings SS316 | |
| Psig | bar | ||||||||
| I-PSWMC-4T-4N | 1/4 | 1/4 | 4.6 | 12.2 | 7.1 | 14.2 | 29.2 | 7,500 | 516 |
| I-PSWMC-6T-4N | 3/8 | 1/4 | 7.1 | 15.8 | 7.9 | 15.8 | 31.8 | 7,500 | 516 |
| I-PSWMC-6T-6N | 3/8 | 3/8 | 7.1 | 15.8 | 7.9 | 17.4 | 31.8 | 7,300 | 502 |
| I-PSWMC-6T-8N | 3/8 | 1/2 | 7.1 | 15.8 | 7.9 | 22.2 | 37.3 | 7,200 | 496 |
| I-PSWMC-8T-4N | 1/2 | 1/4 | 7.1 | 18.5 | 9.7 | 19.05 | 33.3 | 6,200 | 427 |
| I-PSWMC-8T-6N | 1/2 | 3/8 | 9.4 | 18.5 | 9.7 | 19.05 | 33.3 | 6,200 | 427 |
| I-PSWMC-8T-8N | 1/2 | 1/2 | 10.2 | 18.5 | 9.7 | 22.2 | 38.9 | 6,200 | 427 |
