I-PSWT

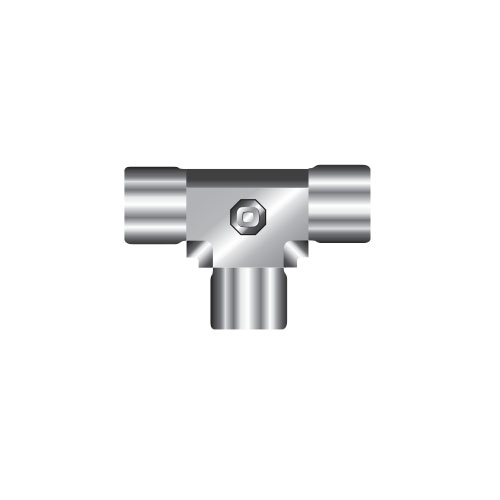

Union Tee(Socket weld Ends)

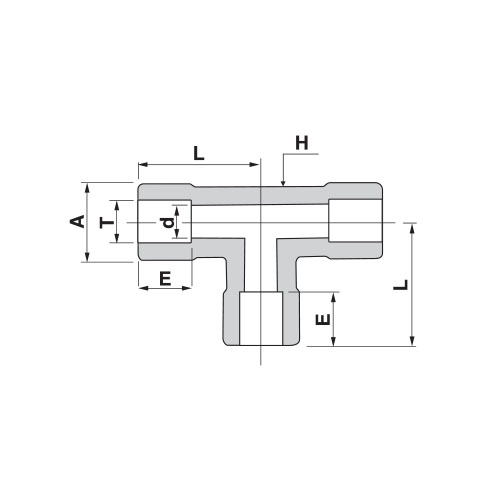

| Part Number | Tube O. D T |
d | A | E | H Wrench Flat |
L | Pressure Ratings SS316 | |
| Psig | bar | |||||||
| I-PSWT-2T | 1/8 | 2.3 | 13.4 | 2.5 | 12.7 | 15.0 | 11,800 | 813 |
| I-PSWT-4T | 1/4 | 4.6 | 13.4 | 7.1 | 12.7 | 21.8 | 11,300 | 778 |
| I-PSWT-6T | 3/8 | 7.1 | 15.8 | 7.9 | 12.7 | 24.5 | 8,400 | 578 |
| I-PSWT-8T | 1/2 | 10.2 | 20.6 | 9.7 | 17.4 | 29.0 | 7,800 | 537 |
| I-PSWT-10T | 5/8 | 12.7 | 23.8 | 10.4 | 20.6 | 34.5 | 6,700 | 461 |
| I-PSWT-12T | 3/4 | 15.7 | 28.6 | 11.2 | 25.4 | 37.0 | 6,700 | 461 |
| I-PSWT-16T | 1 | 22.1 | 35.0 | 15.7 | 31.8 | 46.5 | 6,100 | 420 |
