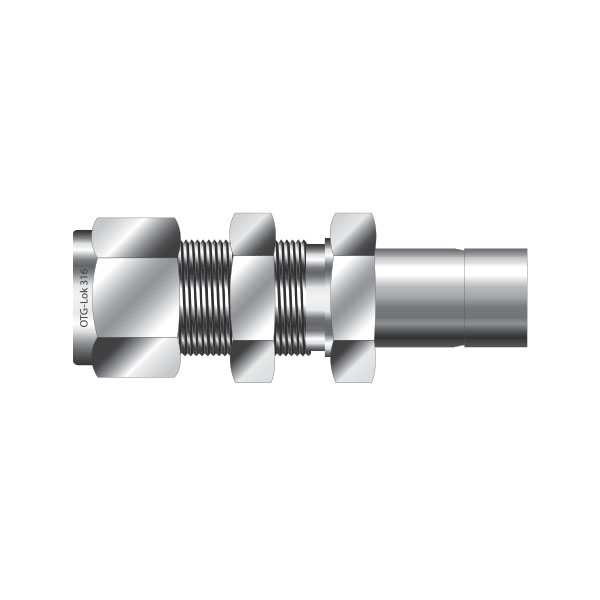

OBA
Bulkhead Adapter

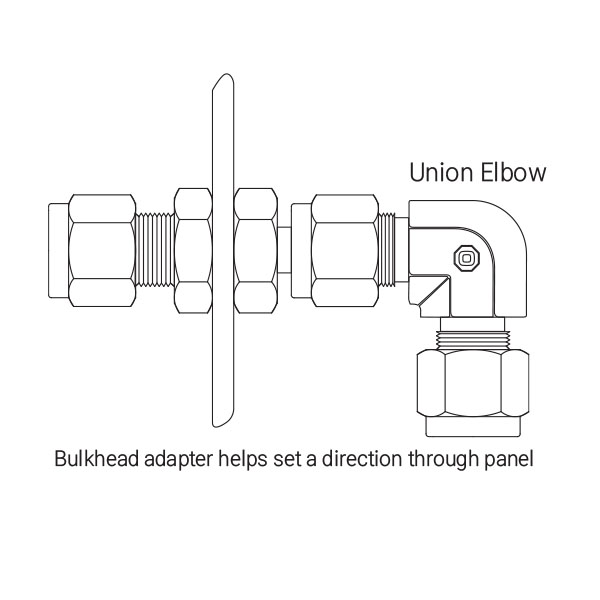

Connects fractional tube to fractional OTG-LOK tube fitting port

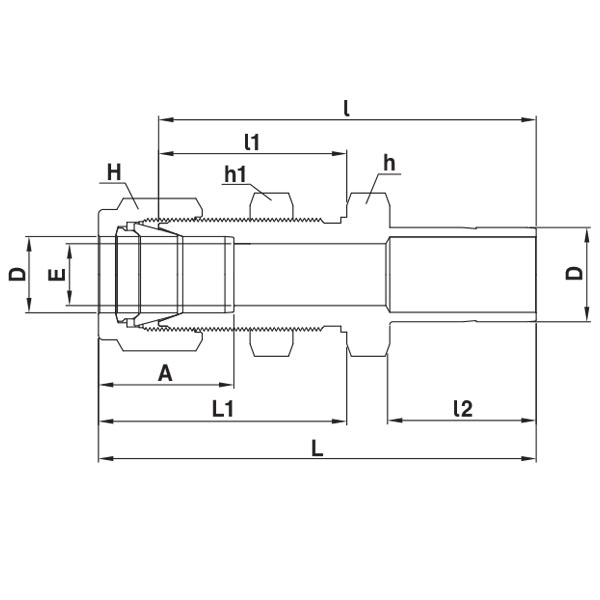

| Part No. |
Tube O.D D |
E Min. |
Width across flat | A | l | l1 | l2 | L | L1 | Panel Hole Drill Size |
Panel Max Thickness |
||||||
| in. | mm | h | H | ||||||||||||||
| in. | mm | in. | mm | ||||||||||||||
| OBA 2-2 | 1/8 | 3.17 | 2.03 | 1/2 | 12.70 | 7/16 | 11.11 | 12.70 | 42.92 | 24.63 | 13.45 | 49.53 | 31.24 | 8.33 | 12.70 | ||
| OBA 4-4 | 1/4 | 6.35 | 4.82 | 5/8 | 15.87 | 9/16 | 14.28 | 15.24 | 48.51 | 26.16 | 15.74 | 55.88 | 33.52 | 11.50 | 10.16 | ||
| OBA 6-6 | 3/8 | 9.52 | 7.11 | 3/4 | 19.05 | 11/16 | 17.46 | 16.76 | 53.84 | 29.46 | 17.50 | 61.21 | 36.83 | 14.68 | 11.17 | ||
| OBA 8-8 | 1/2 | 12.70 | 10.41 | 15/16 | 23.81 | 7/8 | 22.22 | 22.86 | 62.73 | 31.75 | 23.11 | 72.89 | 41.91 | 19.44 | 12.70 | ||
| OBA 10-10 | 5/8 | 15.87 | 12.70 | 1-1/16 | 26.98 | 1 | 25.40 | 24.38 | 65.02 | 32.51 | 24.70 | 75.18 | 42.67 | 22.62 | 12.70 | ||
| OBA 16-16 | 1 | 25.40 | 20.32 | 1-5/8 | 41.28 | 1-1/2 | 38.10 | 31.24 | 88.13 | 45.21 | 31.70 | 100.33 | 57.40 | 33.73 | 19.05 | ||
| OBA 20-20 | 1-1/4 | 31.75 | 27.68 | 1-7/8 | 47.63 | 1-7/8 | 47.63 | 41.14 | 102.07 | 47.75 | 40.00 | 124.17 | 69.85 | 41.67 | 19.05 | ||
| OBA 24-24 | 1-1/2 | 38.10 | 34.03 | 2-1/4 | 57.15 | 2-1/4 | 57.15 | 50.03 | 118.33 | 49.27 | 51.50 | 145.51 | 76.45 | 49.61 | 19.05 | ||
| OBA 32-32 | 2 | 50.80 | 45.97 | 2-3/4 | 69.85 | 3 | 76.20 | 67.56 | 148.79 | 56.38 | 68.40 | 185.82 | 93.71 | 57.94 | 19.05 | ||
