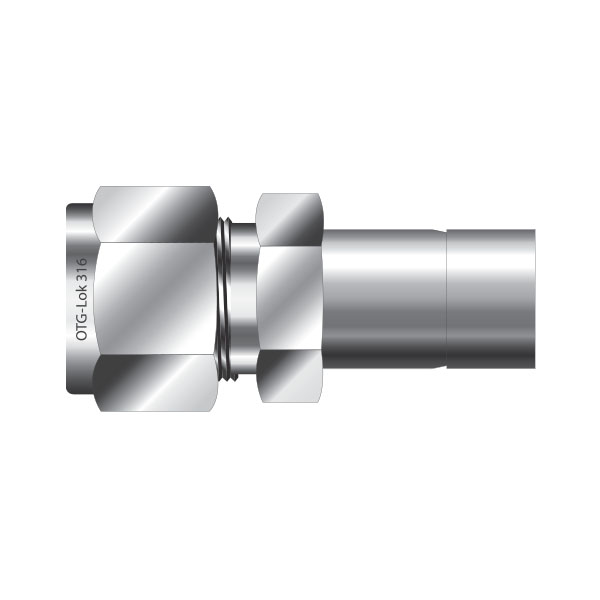

Reducer

OR
OR-01
PDF Download
CAD Download
Connects fractional tube to fractional OTG-LOK tube fitting ports
Untitled Document
Part

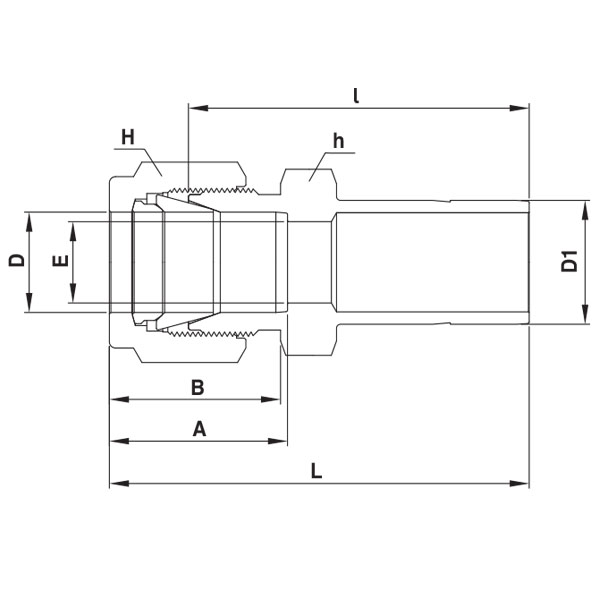

No.		 Tube O.D
D		 E
Min.		 Width across flat A B l L
h H
D D1 in. mm in. mm
in. mm in. mm
OR 1-2 1/16 1.59 1/8 3.17 1.27 5/16 7.93 5/16 7.93 8.63 10.92 25.40 29.21
OR 1-4 1/16 1.59 1/4 6.35 1.27 5/16 7.93 5/16 7.93 8.63 10.92 27.68 31.49
OR 2-1 1/8 3.17 1/16 1.59 1.76 7/16 11.11 7/16 11.11 12.70 15.24 22.35 28.95
OR 2-2 1/8 3.17 1/8 3.17 2.03 7/16 11.11 7/16 11.11 12.70 15.24 26.92 33.52
OR 2-3 1/8 3.17 3/16 4.76 2.28 7/16 11.11 7/16 11.11 12.70 15.24 27.68 34.29
OR 2-4 1/8 3.17 1/4 6.35 2.28 7/16 11.11 7/16 11.11 12.70 15.24 29.46 36.06
OR 2-6 1/8 3.17 3/8 9.52 2.28 7/16 11.11 7/16 11.11 12.70 15.24 30.98 37.59
OR 2-8 1/8 3.17 1/2 12.70 2.28 9/16 14.28 7/16 11.11 12.70 15.24 37.59 44.19
OR 3-2 3/16 4.76 1/8 3.17 2.03 7/16 11.11 1/2 12.70 13.71 16.00 28.19 34.79
OR 3-4 3/16 4.76 1/4 6.35 3.04 7/16 11.11 1/2 12.70 13.71 16.00 30.48 37.08
OR 4-2 1/4 6.35 1/8 3.17 2.03 1/2 12.70 9/16 14.28 15.24 17.78 29.46 36.83
OR 4-3 1/4 6.35 3/16 4.76 3.04 1/2 12.70 9/16 14.28 15.24 17.78 30.22 37.59
OR 4-4 1/4 6.35 1/4 6.35 4.82 1/2 12.70 9/16 14.28 15.24 17.78 31.75 39.11
OR 4-5 1/4 6.35 5/16 7.93 4.82 1/2 12.70 9/16 14.28 15.24 17.78 32.51 39.87
OR 4-6 1/4 6.35 3/8 9.52 4.82 1/2 12.70 9/16 14.28 15.24 17.78 33.27 40.64
OR 4-8 1/4 6.35 1/2 12.70 4.82 9/16 14.28 9/16 14.28 15.24 17.78 38.86 46.22
OR 4-10 1/4 6.35 5/8 15.87 4.82 11/16 17.46 9/16 14.28 15.24 17.78 40.64 48.00
OR 4-12 1/4 6.35 3/4 19.05 4.82 13/16 20.64 9/16 14.28 15.24 17.78 40.38 47.75
OR 5-6 5/16 7.93 3/8 9.52 6.35 9/16 14.28 5/8 15.87 16.25 18.54 34.54 41.91
OR 5-8 5/16 7.93 1/2 12.70 6.35 9/16 14.28 5/8 15.87 16.25 18.54 40.13 47.49
OR 6-4 3/8 9.52 1/4 6.35 4.82 5/8 15.87 11/16 17.46 16.76 19.30 34.03 41.40
OR 6-6 3/8 9.52 3/8 9.52 7.11 5/8 15.87 11/16 17.46 16.76 19.30 35.81 43.18
OR 6-8 3/8 9.52 1/2 12.70 7.11 5/8 15.87 11/16 17.46 16.76 19.30 41.14 45.81
OR 6-10 3/8 9.52 5/8 15.87 7.11 11/16 17.46 11/16 17.46 16.76 19.30 42.92 50.29
OR 6-12 3/8 9.52 3/4 19.05 7.11 13/16 20.64 11/16 17.46 16.76 19.30 42.92 50.29
OR 8-4 1/2 12.70 1/4 6.35 4.82 13/16 20.64 7/8 22.22 22.86 21.84 34.79 44.95
OR 8-6 1/2 12.70 3/8 9.52 7.11 13/16 20.64 7/8 22.22 22.86 21.84 36.57 46.73
OR 8-8 1/2 12.70 1/2 12.70 9.90 13/16 20.64 7/8 22.22 22.86 21.84 42.16 52.32
OR 8-10 1/2 12.70 5/8 15.87 10.41 13/16 20.64 7/8 22.22 22.86 21.84 43.68 53.84
OR 8-12 1/2 12.70 3/4 19.05 10.41 13/16 20.64 7/8 22.22 22.86 21.84 43.68 53.84
OR 8-16 1/2 12.70 1 25.40 10.41 1-1/16 26.98 7/8 22.22 22.86 21.84 50.03 60.19
OR 10-12 5/8 15.87 3/4 19.05 12.70 15/16 23.81 1 25.40 24.38 21.84 44.45 54.61
OR 10-14 5/8 15.87 7/8 22.22 12.70 15/16 23.81 1 25.40 24.38 21.84 45.97 56.13
OR 10-16 5/8 15.87 1 25.40 12.70 1-1/16 26.98 1 25.40 24.38 21.84 50.80 60.96
OR 12-8 3/4 19.05 1/2 12.70 9.90 1-1/16 26.98 1-1/8 28.57 24.38 21.84 44.45 54.61
OR 12-16 3/4 19.05 1 25.40 15.74 1-1/16 26.98 1-1/8 28.57 24.38 21.84 52.32 62.48
OR 16-20 1 25.40 1-1/4 31.75 22.35 1-3/8 34.93 1-1/2 38.10 31.24 26.41 68.32 80.51
OR 16-24 1 25.40 1-1/2 38.10 22.35 1-5/8 41.28 1-1/2 38.10 31.24 26.41 76.96 89.51
OR 16-32 1 25.40 2 50.80 22.35 2-1/8 53.98 1-1/2 38.10 31.24 26.41 100.33 112.52
OR 20-24 1-1/4 31.75 1-1/2 38.10 27.68 1-7/8 47.63 1-7/8 57.15 41.14 38.86 82.04 104.14
OR 20-32 1-1/4 31.75 2 50.80 27.68 1-7/8 47.63 1-7/8 76.20 41.14 38.86 103.12 125.22
OR 24-32 1-1/2 38.10 2 50.80 34.03 2-1/4 57.15 2-1/4 76.20 50.03 45.21 104.14 131.31
