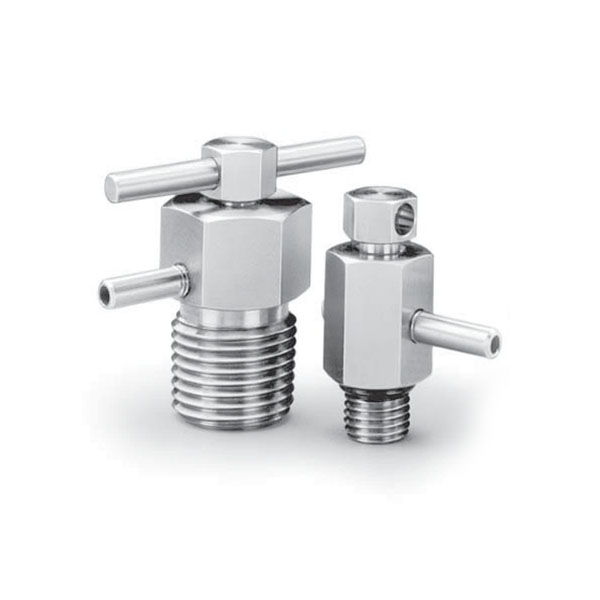

OBLV Series
Bleed Valves
Features
■ Pressure rating up to 10,000psi (689bar) @100°F(38°C)
■ Temperature up to 850°F(454°C)
■ Size range from 1/8" to 1/2" Tubing and piping system.
■ Back stop screw prevents accident remove of stem
■ Stem is hard chrome-plated for maximum service life.
■ Variety of End connections include OTG-Lok, NPT & ISO threads Male / Female
■ 316 stainless steel, carbon steel, or alloy 400 materials
Applications
■ OTG bleed valve is designed to on instrumental Fluid handling apparatus such as manifolds and gage root valves in order to vent signal line pressure to atmosphere before disassemble of an instrument or to facilitate in calibration

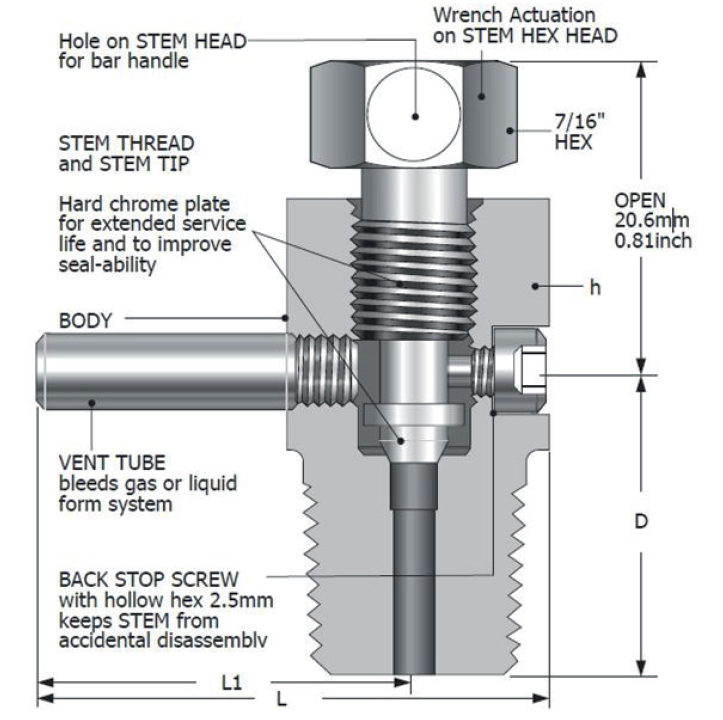

Design

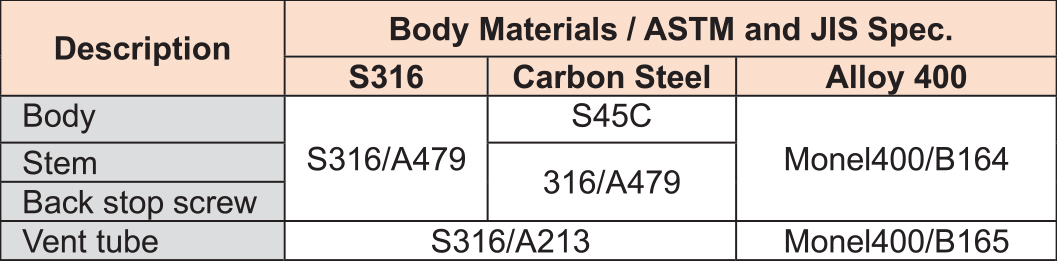

Materials of Construction
Carbon steel bodies are white zinc plated for corrosion resistance.

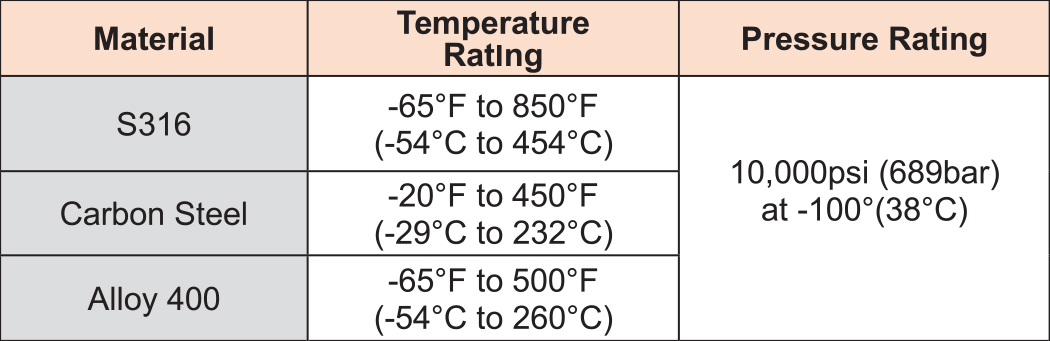

Technical Data

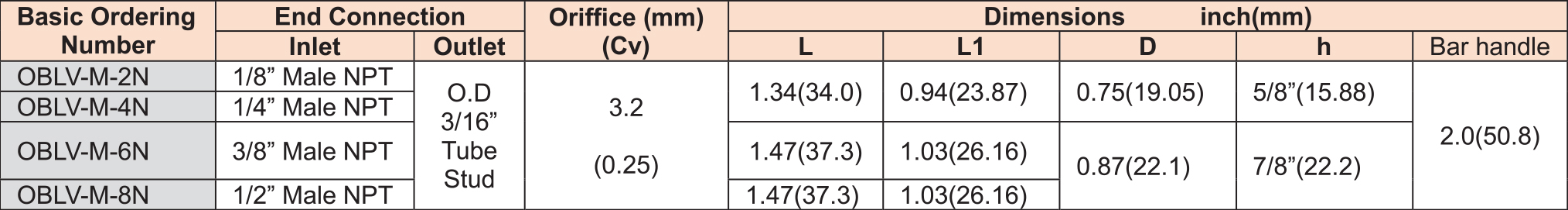

Ordering Information
Dimensions are for reference only, subject to change.
How to Order
To order, add the valve body material as a suffix to the basic ordering number. Stainless: SS, Carbon Steel: CS, Alloy 400: MO
Option
- Bar handle
Bar handle ordering number : -BH - Barbed Vent Tube
To order add designator BV as a suffix ti the basic ordering number.
Esample: OBLV-M-8N-BV
Factory Test
Every valve is tested with nitrogen at 1000psi(69bar) to maximum leak rate of 0.1 scc/min.
Causion
These valves do not have a stem seal. It is imperative to open the valve slowly and direct the vent tube away from persons operating or near the valve. Because of the absence of a stem seal, small amounts of fluid will go through the stem thread area when the valves are opened.
