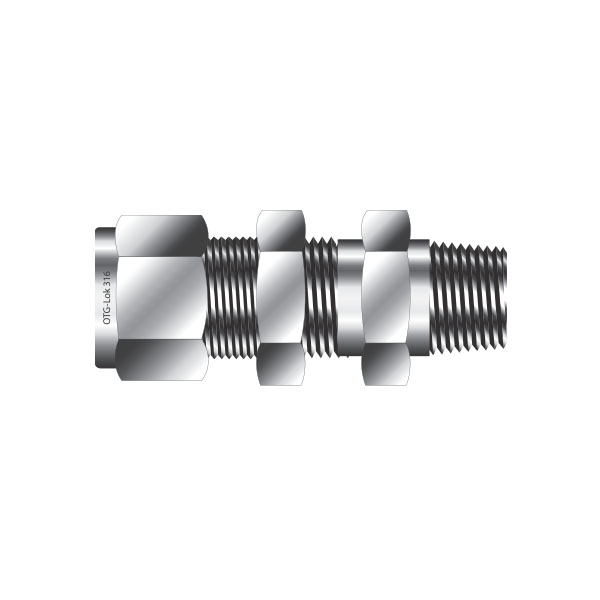

Bulkhead Male Connector

OBMC
OBMC-01
PDF Download
CAD Download
Connects fractional tube to female NPT thread
Untitled Document

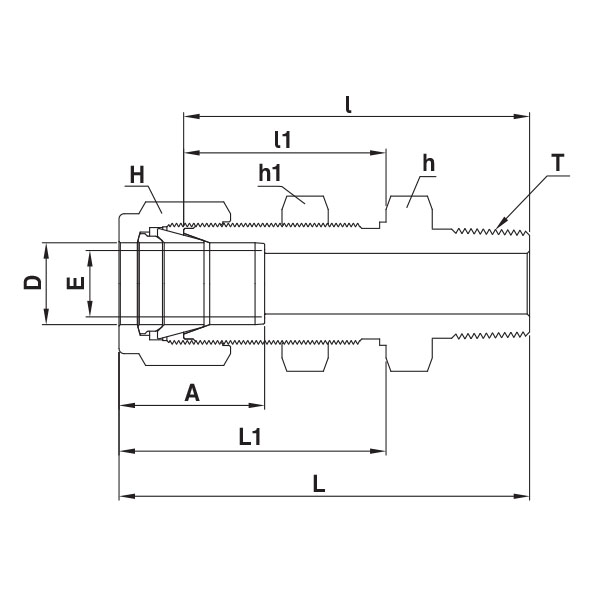

Part
No.		 Tube O.D
D		 T
NPT		 E
Min.		 Width across flat A l l1 L L1 Panel
Hole
Drill Size		 Panel
Max
Thickness
in. mm h H H1
in. mm in. mm in. mm
OBMC 2-2N 1/8 3.17 1/8 2.28 1/2 12.70 1/2 12.70 7/16 11.11 12.70 39.87 24.63 46.48 31.24 8.33 12.70
OBMC 4-2N 1/4 6.35 1/8 4.82 5/8 15.87 5/8 15.87 9/16 14.28 15.24 42.16 26.16 49.53 33.52 11.50 10.16
OBMC 4-4N 1/4 6.35 1/4 4.82 5/8 15.87 5/8 15.87 9/16 14.28 15.24 45.97 26.16 53.34 33.52 11.50 10.16
OBMC 6-4N 3/8 9.52 1/4 7.11 3/4 19.05 3/4 19.05 11/16 17.46 16.76 50.03 29.46 57.40 36.83 14.68 11.17
OBMC 6-6N 3/8 9.52 3/8 7.11 3/4 19.05 3/4 19.05 11/16 17.46 16.76 50.03 29.46 57.40 36.83 14.68 11.17
OBMC 6-8N 3/8 9.52 1/2 7.11 7/8 22.22 3/4 19.05 11/16 17.46 16.76 56.38 29.46 63.75 36.83 14.68 11.17
OBMC 8-6N 1/2 12.70 3/8 9.39 15/16 23.81 15/16 23.81 7/8 22.22 22.86 53.08 31.75 63.24 41.91 19.44 12.70
OBMC 8-8N 1/2 12.70 1/2 10.41 15/16 23.81 15/16 23.81 7/8 22.22 22.86 58.67 31.75 68.83 41.91 19.44 12.70
OBMC 12-12N 3/4 19.05 3/4 15.74 1-3/16 30.16 1-3/16 30.16 1-1/8 28.58 24.38 66.04 37.33 76.20 47.49 25.76 16.76
OBMC 16-16N 1 25.40 1 22.35 1-5/8 41.28 1-5/8 41.28 1-1/2 38.10 31.24 81.02 45.21 93.21 57.40 33.73 19.05
OBMC 20-20N 1-1/4 31.75 1-1/4 27.68 1-7/8 47.63 1-7/8 47.63 1-7/8 47.63 41.14 85.97 47.75 108.07 69.85 41.67 19.05
OBMC 24-24N 1-1/2 38.10 1-1/2 34.03 2-1/4 57.15 2-1/4 57.15 2-1/4 57.15 50.03 93.03 49.27 120.21 76.45 49.61 19.05
OBMC 32-32N 2 50.80 2 45.97 2-1/4 69.85 2-3/4 69.85 3 76.20 67.56 107.29 56.38 144.62 93.71 16.27 19.05
Connects metric tube to female NPT thread
Untitled Document
Part
No.		 Tube O.D
D		 T
NPT		 E
Min.		 Width across flat A l l1 L L1 Panel
Hole
Drill Size		 Panel
Max
Thickness
h H1 H
OBMC 6M-2N 6 1/8 2.28 16 16 14 15.3 42.2 26.2 49.6 33.6 11.5 10.2
OBMC 6M-4N 6 1/4 4.82 16 16 14 15.3 46.2 26.2 53.6 33.6 11.5 10.2
OBMC 6M-6N 6 3/8 4.82 16 16 14 15.3 46.2 26.2 53.6 33.6 11.5 10.2
OBMC 6M-8N 6 1/2 4.82 16 16 14 15.3 52.6 26.2 60.0 33.6 11.5 10.2
OBMC 8M-6N 8 3/8 6.4 18 18 16 16.2 50.0 28.6 57.5 36.1 13.1 11.2
OBMC 10M-4N 10 1/4 7.11 22 22 19 17.2 50.0 29.4 57.5 37.0 16.2 11.2
OBMC 10M-6N 10 3/8 7.9 22 22 19 17.2 50.0 29.4 57.5 37.0 16.2 11.2
OBMC 10M-8N 10 1/2 7.9 22 22 19 17.2 55.9 29.4 63.5 37.0 16.2 11.2
OBMC 12M-6N 12 3/8 9.8 24 24 22 22.8 53.3 31.8 63.4 41.9 19.5 12.7
OBMC 12M-8N 12 1/2 9.8 24 24 22 22.8 58.7 31.8 68.8 41.9 19.5 12.7
