OMCT
Thermocouple(Bore-Thru)

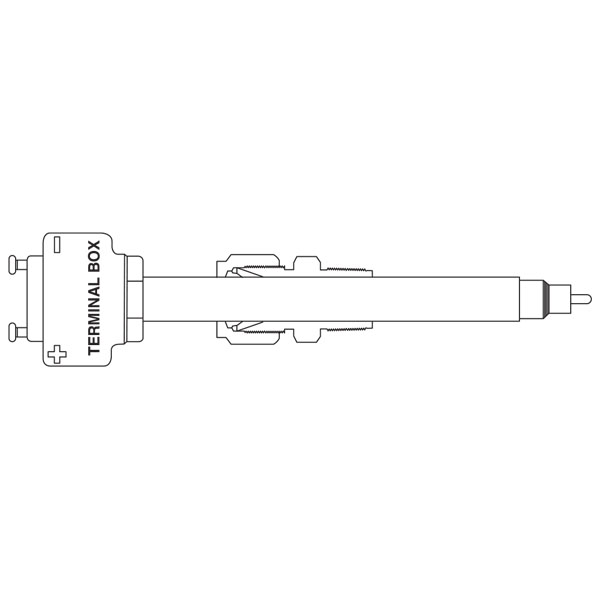

Bored-through fitting has no tube shoulder, allowing Dip tube of Thermocouple to pass through the fitting
Most male connectors – OMC can be bored-through except those fitting with 1/8 in. NPT or BSPT end.
To order bored-through male connectors, add T to
the ordering number. Example : OMC T8-8N-SSA

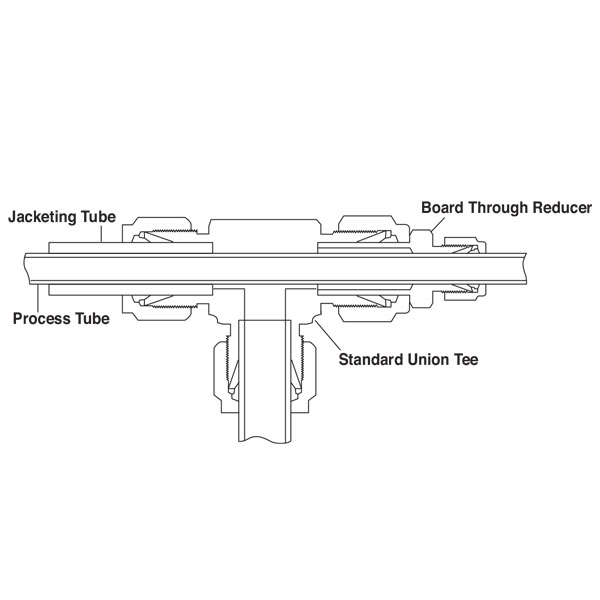

The combination of standard tee and bored-through
port reducer – OR can be used to chill or heat a process
line as heat exchanger fitting.
To order bored-throughport reducer, add T to the
ordering number. Example : OR T8-8N-SSA
Diagram shown ;
Jacketing tube 1/2 in. OD
Process tube : 1/4 in. OD
❖ Thermocouple is a sensor for measuring temperature.
❖ Dip tube is to direct the incoming cold water to the bottom of water heater tank or to use for removing debirs
from the bottom of water tank.
Assembly instruction
- Position the length of dip tube / thermocouple passed through the fitting.
- Once positioned, hold it to prevent from shifting during assembly.
- Wrench tightens the nut 1 1/4turns from finger-tight position, keeping the body steady with a backup wrench.
