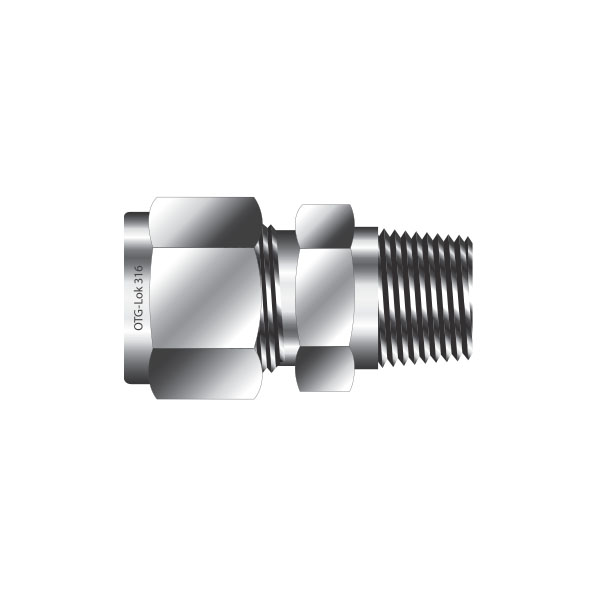

ISO/BSP Tapered Thread Male Connector

OMC-R

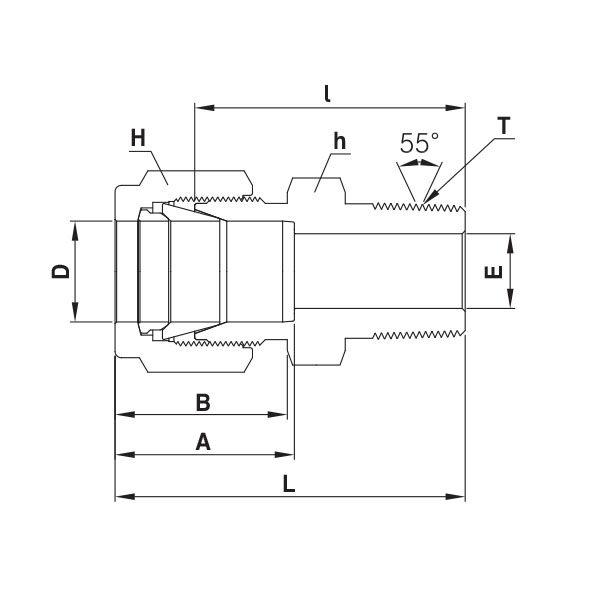

OMC-R-01
PDF Download
CAD Download
Connects fractional tube to female ISO / BSP tapered thread
Untitled Document
Part
No.		 Tube O.D
D		 T
(PT)		 E
Min.		 Width across flat A B I L
h H
in. mm in. mm in. mm
OMC 2-2R 1/8 3.17 1/8 2.28 7/16 11.11 7/16 11.11 12.70 15.24 23.87 30.48
OMC 2-4R 1/8 3.17 1/4 2.28 9/16 14.28 7/16 11.11 12.70 15.24 28.95 35.56
OMC 4-2R 1/4 6.35 1/8 4.82 1/2 12.70 9/16 14.28 15.24 17.78 25.40 32.76
OMC 4-4R 1/4 6.35 1/4 4.82 9/16 14.28 9/16 14.28 15.24 17.78 30.48 37.84
OMC 4-6R 1/4 6.35 3/8 4.82 11/16 17.46 9/16 14.28 15.24 17.78 30.98 38.35
OMC 4-8R 1/4 6.35 1/2 4.82 7/8 22.22 9/16 14.28 15.24 17.78 37.33 44.70
OMC 5-2R 5/16 7.93 1/8 4.82 9/16 14.28 5/8 15.87 16.25 18.54 26.67 34.03
OMC 5-4R 5/16 7.93 1/4 6.35 9/16 14.28 5/8 15.87 16.25 18.54 31.24 38.60
OMC 5-16R 5/16 7.93 1 6.35 1-3/8 34.92 5/8 15.87 16.25 18.54 46.2 50.0
OMC 6-2R 3/8 9.52 1/8 4.82 5/8 15.87 11/16 17.46 16.76 19.30 27.94 35.30
OMC 6-4R 3/8 9.52 1/4 7.11 5/8 15.87 11/16 17.46 16.76 19.30 32.51 39.87
OMC 6-6R 3/8 9.52 3/8 7.11 11/16 17.46 11/16 17.46 16.76 19.30 32.51 39.87
OMC 6-8R 3/8 9.52 1/2 7.11 7/8 22.22 11/16 17.46 16.76 19.30 38.86 46.22
OMC 6-12R 3/8 9.52 3/4 7.11 1-1/16 26.98 11/16 17.46 16.76 19.30 40.38 47.75
OMC 8-2R 1/2 12.70 1/8 4.82 13/16 20.64 7/8 22.22 22.86 21.84 28.70 38.86
OMC 8-4R 1/2 12.70 1/4 4.82 13/16 20.64 7/8 22.22 22.86 21.84 33.27 43.43
OMC 8-6R 1/2 12.70 3/8 9.65 13/16 20.64 7/8 22.22 22.86 21.84 33.27 43.43
OMC 8-8R 1/2 12.70 1/2 10.41 7/8 22.22 7/8 22.22 22.86 21.84 38.86 49.02
OMC 8-12R 1/2 12.70 3/4 10.41 1-1/16 26.98 7/8 22.22 22.86 21.84 40.38 50.54
OMC 8-16R 1/2 12.70 1 10.41 1-3/8 34.92 7/8 22.22 22.86 21.84 46.99 57.15
OMC 10-6R 5/8 15.87 3/8 9.65 15/16 23.81 1 25.40 24.38 21.84 34.03 44.19
OMC 10-8R 5/8 15.87 1/2 11.93 15/16 23.81 1 25.40 24.38 21.84 38.86 49.02
OMC 10-12R 5/8 15.87 3/4 12.70 1-1/16 26.98 1 25.40 24.38 21.84 40.38 50.54
OMC 12-8R 3/4 19.05 1/2 11.93 1-1/16 26.98 1-1/8 28.58 24.38 21.84 40.38 50.54
OMC 12-12R 3/4 19.05 3/4 15.74 1-1/16 26.98 1-1/8 28.58 24.38 21.84 40.38 50.54
OMC 12-16R 3/4 19.05 1 15.74 1-3/8 34.92 1-1/8 28.58 24.38 21.84 46.99 57.15
OMC 16-12R 1 25.40 3/4 15.74 1-3/8 34.92 1-1/2 38.10 31.24 26.41 45.21 57.40
OMC 16-16R 1 25.40 1 22.35 1-3/8 34.92 1-1/2 38.10 31.24 26.41 50.03 62.23
OMC 20-12R 1-1/4 31.75 3/4 15.74 1-3/4 44.45 1-7/8 47.63 41.14 38.86 50.0 72.10
OMC 20-16R 1-1/4 31.75 1 22.35 1-3/4 44.45 1-7/8 47.63 41.14 38.86 55.11 77.21
OMC 20-20R 1-1/4 31.75 1-1/4 27.68 1-3/4 44.45 1-7/8 47.63 41.14 38.86 55.11 77.21
OMC 32-32R 2 50.80 2 45.97 1-3/4 69.85 3 76.20 67.56 62.73 76.20 113.53
Connects metric tube to female ISO / BSP tapered thread
Untitled Document
Part
Ro.		 Tube O.D
D		 T
RPT		 E
MiR.		 Width across flat A B I L
h H
OMC 2M-2R 2 1/8 1.7 12 12 12.9 15.3 23.9 30.5
OMC 3M-2R 3 1/8 2.4 12 12 12.9 15.3 23.1 29.7
OMC 3M-4R 3 1/4 2.4 14 12 12.9 15.3 29.0 35.6
OMC 4M-2R 4 1/8 2.4 12 12 13.7 16.1 24.6 31.2
OMC 4M-4R 4 1/4 2.4 14 12 13.7 16.1 29.7 36.3
OMC 6M-2R 6 1/8 4.8 14 14 15.3 17.7 25.4 32.8
OMC 6M-4R 6 1/4 4.8 14 14 15.3 17.7 30.2 37.6
OMC 6M-6R 6 3/8 4.8 18 14 15.3 17.7 31.0 38.4
OMC 6M-8R 6 1/2 4.8 22 14 15.3 17.7 37.3 44.0
OMC 8M-2R 8 1/8 4.8 15 16 16.2 18.6 26.7 34.2
OMC 8M-4R 8 1/4 6.4 15 16 16.2 18.6 31.2 38.7
OMC 8M-6R 8 3/8 6.4 18 16 16.2 18.6 31.8 39.2
OMC 8M-8R 8 1/2 6.4 22 16 16.2 18.6 37.3 44.8
OMC 10M-2R 10 1/8 4.8 18 19 17.2 19.5 28.7 36.3
OMC 10M-4R 10 1/4 7.1 18 19 17.2 19.5 33.3 40.9
OMC 10M-6R 10 3/8 7.9 18 19 17.2 19.5 33.3 40.9
OMC 10M-8R 10 1/2 7.9 22 19 17.2 19.5 38.1 45.7
OMC 12M-4R 12 1/4 7.1 22 22 22.8 22.0 33.3 43.4
OMC 12M-6R 12 3/8 9.5 22 22 22.8 22.0 33.3 43.4
OMC 12M-8R 12 1/2 9.5 22 22 22.8 22.0 38.1 48.2
OMC 12M-12R 12 3/4 9.5 27 22 22.8 22.0 38.9 49.0
OMC 15M-8R 15 1/2 11.9 24 25 24.4 22.0 38.9 49.0
OMC 16M-4R 16 1/4 7.1 24 25 24.4 22.0 34.0 44.1
OMC 16M-6R 16 3/8 9.5 24 25 24.4 22.0 34.0 44.1
OMC 16M-8R 16 1/2 11.9 24 25 24.4 22.0 38.9 49.0
OMC 16M-12R 16 3/4 12.7 27 25 24.4 22.0 38.9 49.0
OMC 18M-8R 18 1/2 11.9 27 30 24.4 22.0 40.4 50.5
OMC 18M-12R 18 3/4 15.1 27 30 24.4 22.0 40.4 50.5
OMC 20M-8R 20 1/2 11.9 30 32 26.0 22.0 42.2 52.3
OMC 20M-12R 20 3/4 15.9 30 32 26.0 22.0 42.2 52.3
OMC 22M -12R 22 3/4 15.9 30 32 26.0 22.0 42.2 52.3
OMC 22M -16R 22 1 18.3 35 32 26.0 22.0 47.8 57.9
OMC 25M -12R 25 3/4 15.9 35 38 31.3 26.5 45.2 57.5
OMC 25M -16R 25 1 21.8 35 38 31.3 26.5 50.0 62.3
OMC 28M-16R 28 1 21.8 41 46 36.6 36.6 51.6 72.4
OMC 28M-20R 28 1-1/4 23.0 46 46 36.6 26.5 52.3 73.1
OMC 32M-20R 32 1-1/4 28.6 46 50 42.0 41.6 56.6 76.9
OMC 32M-24R 38 1-1/2 33.7 55 60 49.4 47.9 64.0 91.6
