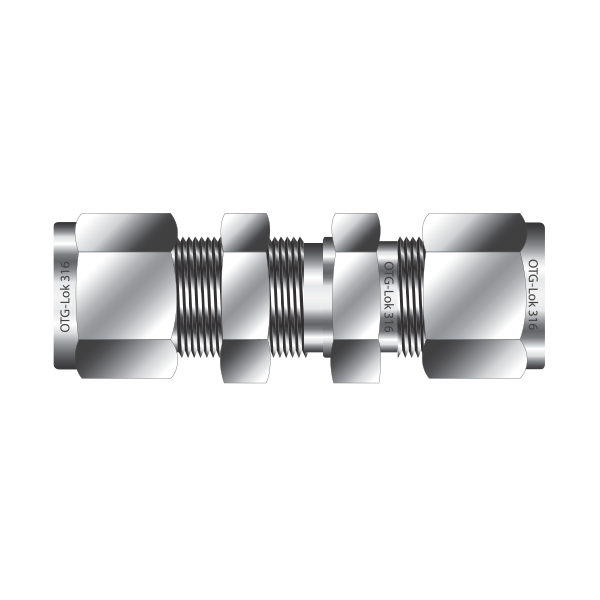

Bulkhead Union

OBU
OBU_01
PDF Download
CAD Download
Connects fractional tube
Untitled Document
Part
No.		 Tube O.D
D		 E
Min.		 Width across flat A B l l1 L L1 Panel
Hole
Drill Size		 Panel
Max
Thickness
h H
in. mm in. mm in. mm
OBU-1 1/16 1.59 1.27 5/16 7.93 5/16 7.93 8.63 10.92 23.87 13.46 31.50 17.27 5.16 3.05
OBU-2 1/8 3.17 2.28 1/2 12.70 7/16 11.11 12.70 15.24 38.10 24.63 51.30 31.24 8.33 12.70
OBU-3 3/16 4.76 3.04 9/16 14.28 1/2 12.70 13.71 16.00 40.38 25.40 53.59 32.00 9.92 12.70
OBU-4 1/4 6.35 4.82 5/8 15.87 9/16 14.28 15.24 17.78 42.92 26.16 53.59 33.52 11.50 10.16
OBU-5 5/16 7.93 6.35 11/16 17.46 5/8 15.87 16.25 18.54 45.97 28.44 53.59 35.81 13.09 11.17
OBU-6 3/8 9.52 7.11 3/4 19.05 11/16 17.46 16.76 19.30 47.49 29.46 62.23 36.83 14.68 11.17
OBU-8 1/2 12.70 10.41 15/16 23.81 7/8 22.22 22.86 21.84 50.80 31.75 71.12 41.91 19.44 12.70
OBU-10 5/8 15.87 12.70 1-1/16 26.98 1 25.40 24.38 21.84 52.32 32.51 72.64 42.67 22.62 12.70
OBU-12 3/4 19.05 15.74 1-3/16 30.16 1-1/8 28.57 24.38 21.84 58.67 37.33 78.99 47.49 25.79 16.76
OBU-14 7/8 22.22 18.28 1-3/8 34.92 1-1/4 31.75 25.90 21.84 64.26 42.92 84.58 53.08 28.97 19.05
OBU-16 1 25.40 22.35 1-5/8 41.27 1-1/2 38.10 31.24 26.41 71.37 45.21 95.75 57.40 33.73 19.05
OBU-20 1-1/4 31.75 27.68 1-7/8 47.63 1-7/8 47.63 41.14 38.86 78.99 47.75 123.19 69.85 41.67 19.05
OBU-24 1-1/2 38.10 34.03 2-1/4 57.15 2-1/4 57.15 50.03 45.21 84.83 49.27 139.19 76.45 49.61 19.05
OBU-32 2 50.80 45.97 2-3/4 69.85 3 76.20 67.56 62.73 105.56 56.38 180.34 93.72 57.94 19.05
Connects metric tube
Untitled Document
Part
No.		 Tube O.D
D		 E
Min.		 Width across flat A B l l1 L L1 Panel
Hole
Drill Size		 Panel
Max
Thickness
h H
OBU-3M 3 2.4 14.0 12 12.9 15.3 38.1 24.6 51.3 31.2 8.3 12.7
OBU-4M 4 2.4 14.0 12 13.7 16.1 40.4 25.4 53.6 32.0 9.9 12.7
OBU-6M 6 4.8 16.0 14 15.3 17.7 42.9 26.2 57.7 33.6 11.5 10.2
OBU-8M 8 6.4 18.0 16 16.2 18.6 46.0 28.6 61.0 36.1 13.1 11.2
OBU-10M 10 7.9 22.0 19 17.2 19.5 48.5 29.4 63.7 37.0 16.2 11.2
OBU-12M 12 9.5 24.0 22 22.8 22.0 50.8 31.8 71.0 41.9 19.5 12.7
OBU-15M 15 11.9 27.0 25 24.4 22.0 52.3 32.5 72.5 42.6 22.8 12.7
OBU-16M 16 12.7 27.0 25 24.4 22.0 52.3 32.5 72.5 42.6 22.8 12.7
OBU-18M 18 15.1 30.0 30 24.4 22.0 58.7 37.3 78.9 47.4 26.0 16.8
OBU-20M 20 15.9 35.0 32 26.0 22.0 64.3 42.9 84.5 53.0 29.0 17.0
OBU-22M 22 18.3 35.0 32 26.0 22.0 64.3 42.9 84.5 53.0 29.0 19.1
OBU-25M 25 21.8 41.3 38 31.3 26.5 71.4 45.2 95.9 57.5 33.7 19.1
OBU-32M 32 28.6 50.0 50 42.0 41.6 82.3 49.5 128.3 72.5 42.5 19.0
OBU-38M 38 33.7 60.0 50 49.4 47.9 89.4 51.5 144.6 79.1 50.5 19.0
