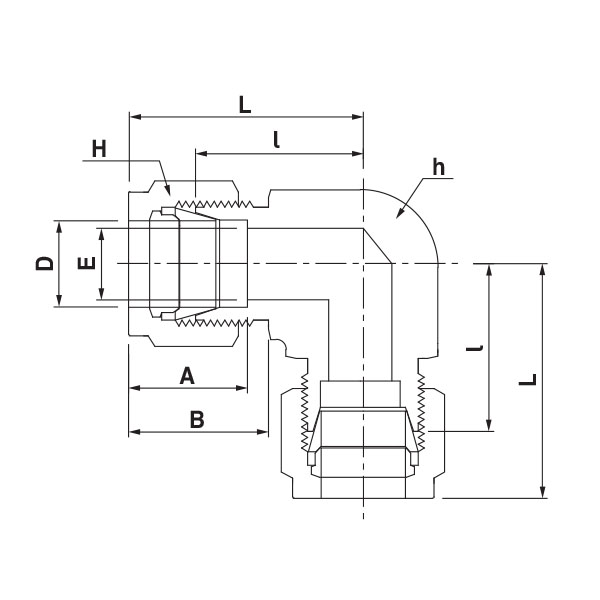

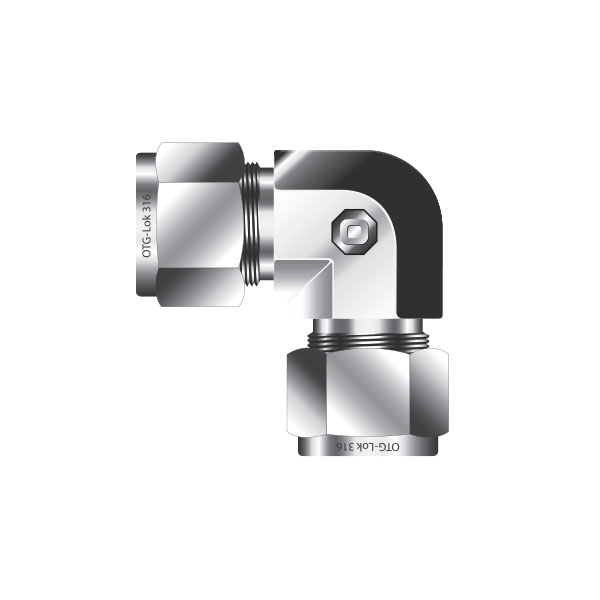

OUE
Union Elbow
Connects fractional tube
| Part No. |
Tube O.D D |
E Min. |
Width across flat | A | B | l | L | ||||
| h | H | ||||||||||
| in. | mm | in. | mm | in. | mm | ||||||
| OUE-1 | 1/16 | 1.59 | 1.27 | 3/8 | 9.52 | 5/16 | 7.93 | 8.63 | 10.92 | 14.00 | 17.88 |
| OUE-2 | 1/8 | 3.17 | 2.28 | 3/8 | 9.52 | 7/16 | 11.11 | 12.70 | 15.24 | 15.74 | 22.35 |
| OUE-3 | 3/16 | 4.76 | 3.04 | 1/2 | 12.70 | 1/2 | 12.70 | 13.71 | 16.00 | 17.78 | 24.38 |
| OUE-4 | 1/4 | 6.35 | 4.82 | 1/2 | 12.70 | 9/16 | 14.28 | 15.24 | 17.78 | 19.55 | 26.92 |
| OUE-5 | 5/16 | 7.93 | 6.35 | 9/16 | 14.28 | 5/8 | 15.87 | 16.25 | 18.54 | 21.33 | 28.70 |
| OUE-6 | 3/8 | 9.52 | 7.11 | 5/8 | 15.87 | 11/16 | 17.46 | 16.76 | 19.30 | 23.11 | 30.4 |
| OUE-8 | 1/2 | 12.70 | 10.41 | 13/16 | 20.63 | 7/8 | 22.22 | 22.86 | 21.84 | 25.90 | 36.06 |
| OUE-10 | 5/8 | 15.87 | 12.70 | 15/16 | 23.80 | 1 | 25.40 | 24.38 | 21.84 | 28.70 | 38.80 |
| OUE-12 | 3/4 | 19.05 | 15.74 | 1-1/16 | 26.98 | 1-1/8 | 28.57 | 24.38 | 21.84 | 29.71 | 39.87 |
| OUE-14 | 7/8 | 22.22 | 18.28 | 1-1/4 | 31.75 | 1-1/4 | 31.75 | 25.90 | 21.84 | 34.54 | 44.70 |
| OUE-16 | 1 | 25.40 | 22.35 | 1-3/8 | 34.92 | 1-1/2 | 38.10 | 31.24 | 26.41 | 36.83 | 49.02 |
| OUE-20 | 1-1/4 | 31.75 | 27.68 | 1-11/16 | 42.89 | 1-7/8 | 47.63 | 41.14 | 38.86 | 44.50 | 66.54 |
| OUE-24 | 1-1/2 | 38.10 | 34.03 | 2 | 50.80 | 2-1/4 | 57.15 | 50.03 | 45.21 | 50.80 | 77.97 |
| OUE-32 | 2 | 50.80 | 45.97 | 2-3/4 | 69.85 | 3 | 76.20 | 67.56 | 62.73 | 69.80 | 107.18 |
Connects metric tube
| Part No. |
Tube O.D D |
E Min. |
Width across flat | A | B | l | L | |
| h | H | |||||||
| OUE-2M | 2 | 1.7 | 9.5 | 12 | 12.9 | 15.3 | 15.7 | 22.3 |
| OUE-3M | 3 | 2.4 | 9.5 | 12 | 12.9 | 15.3 | 15.7 | 22.3 |
| OUE-4M | 4 | 2.4 | 12.7 | 12 | 13.7 | 16.4 | 18.8 | 25.4 |
| OUE-6M | 6 | 4.8 | 12.7 | 14 | 15.3 | 17.7 | 19.6 | 27.0 |
| OUE-8M | 8 | 6.4 | 14.3 | 16 | 16.2 | 18.6 | 21.3 | 28.8 |
| OUE-10M | 10 | 7.9 | 17.5 | 19 | 17.2 | 19.5 | 23.9 | 31.5 |
| OUE-12M | 12 | 9.5 | 20.6 | 22 | 22.8 | 22.0 | 25.9 | 36.0 |
| OUE-15M | 15 | 11.9 | 25.4 | 25 | 24.4 | 22.0 | 28.7 | 38.8 |
| OUE-16M | 16 | 12.7 | 25.4 | 25 | 24.4 | 22.0 | 28.7 | 38.8 |
| OUE-18M | 18 | 15.1 | 27.0 | 30 | 24.4 | 22.0 | 29.7 | 39.8 |
| OUE-20M | 20 | 15.9 | 34.92 | 32 | 26.0 | 22.0 | 34.5 | 44.6 |
| OUE-22M | 22 | 18.3 | 34.92 | 32 | 26.0 | 22.0 | 34.5 | 44.6 |
| OUE-25M | 25 | 21.8 | 34.92 | 38 | 31.3 | 26.5 | 36.8 | 49.1 |
| OUE-28M | 28 | 21.8 | 41.0 | 46 | 36.6 | 36.6 | 43.2 | 64.0 |
| OUE-32M | 32 | 28.6 | 46.0 | 50 | 42.0 | 41.6 | 49.3 | 72.3 |
| OUE-38M | 38 | 33.7 | 55.0 | 60 | 49.4 | 47.9 | 56.4 | 84.0 |
