ORE

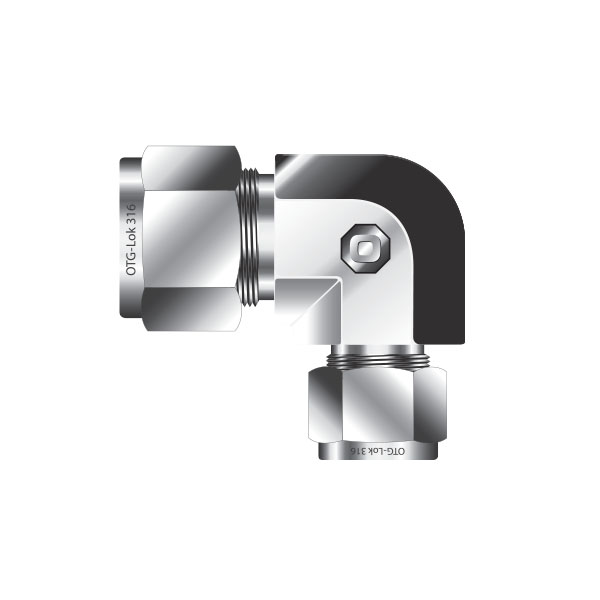

Reducing Union Elbow
Connects fractional tube
| Part No. |
Tube O.D D |

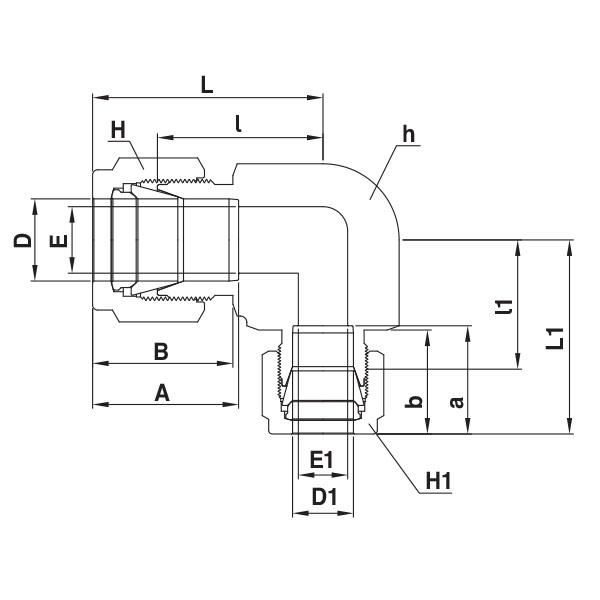

Width across flat | E | E1 | A | a | B | b | l | l1 | L | L1 | ||||||||
| D | D1 | h | H | H1 | ||||||||||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | in. | mm | |||||||||||
| ORE 2-1 | 1/8 | 3.17 | 1/16 | 1.59 | 3/8 | 9.52 | 7/16 | 11.11 | 5/16 | 7.93 | 2.4 | 1.3 | 12.7 | 8.63 | 15.24 | 10.93 | 15.74 | 14.2 | 22.35 | 18.0 |
| ORE 4-2 | 1/4 | 6.35 | 1/8 | 3.17 | 1/2 | 12.7 | 9/16 | 14.28 | 7/16 | 11.11 | 4.8 | 2.4 | 15.24 | 12.7 | 17.78 | 15.24 | 19.55 | 17.9 | 26.92 | 24.5 |
| ORE 6-4 | 3/8 | 9.52 | 1/4 | 6.35 | 5/8 | 15.87 | 11/16 | 17.46 | 9/16 | 14.28 | 7.1 | 4.8 | 16.76 | 15.24 | 19.3 | 17.78 | 23.1 | 21.92 | 30.47 | 29.29 |
| ORE 8-4 | 1/2 | 12.7 | 1/4 | 6.35 | 13/16 | 20.64 | 7/8 | 22.22 | 9/16 | 14.28 | 10.41 | 4.8 | 22.86 | 15.24 | 21.84 | 17.78 | 25.9 | 24.4 | 36.06 | 31.77 |
| ORE 8-6 | 1/2 | 12.7 | 3/8 | 9.52 | 13/16 | 20.64 | 7/8 | 22.22 | 11/16 | 17.46 | 10.41 | 7.1 | 22.86 | 16.76 | 21.84 | 19.30 | 25.9 | 25.9 | 36.06 | 33.27 |
Connects metric tube
| Part No. |
Tube O.D D |
Width across flat | E | E1 | A | a | B | b | l | l1 | L | L1 | ||||||
| D | D1 | h | H | H1 | ||||||||||||||
| in. | mm | in. | mm | mm | in. | mm | ||||||||||||
| ORE 8M-4 | 8 | 1/4 | 6.35 | 9.16 | 14.28 | 16 | 9/16 | 14.28 | 6.4 | 4.8 | 16.2 | 15.24 | 18.6 | 17.78 | 21.3 | 20.6 | 28.7 | 28.0 |
