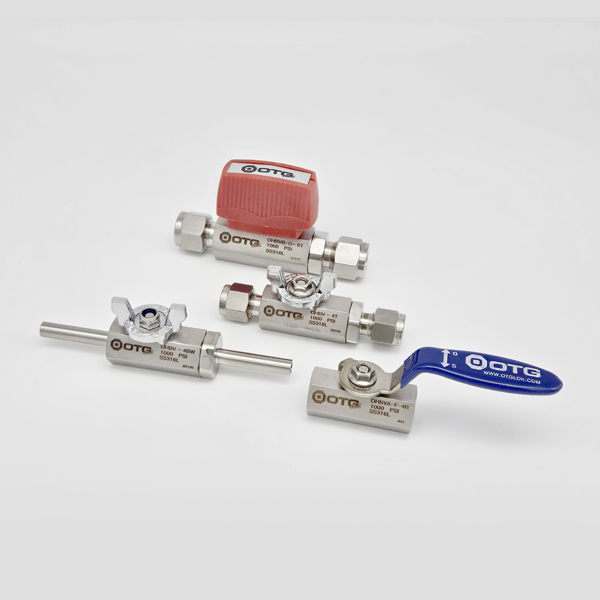

OHBV Series
Hex Ball Valves
-For use from 1/4″ to “1”(6 to 25mm O.D) Tubing and Piping System
-Working pressure up to 1000psig(69bar) and 2000psig(138bar)
-Stainless Steel, Brass
Features
- Compact design with one piece hexagon body construction.
- 2-way straight pattern.
- Free floating ball design provides seat wear compensation.
- Micro -finished ball provides provides a leak-tight seal.
- Low torque quarter turn on-off control.
- Various end connections: reliable OTG-LOK, NPT & ISO male & female Threads.
- Butterfly handle and locking device handle is available as option
- Tube adapter ends allow tubing connection in any direction.

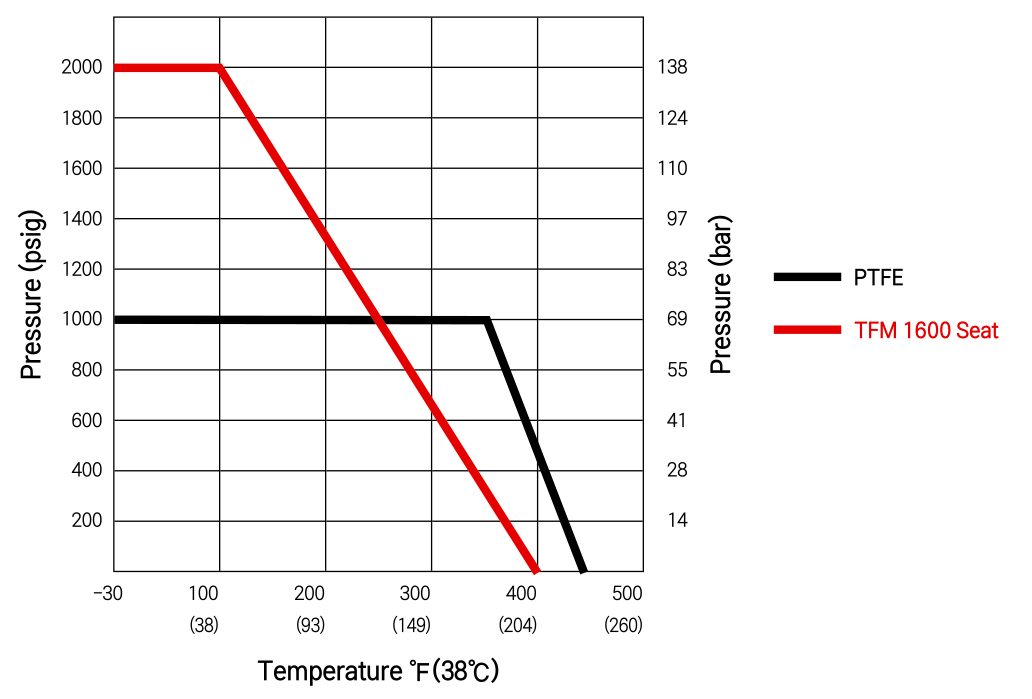

Working Pressure
- Stainless & Brass with PTFE seats: 1000 psig (68.9 barg) at 100°F(38°C).
- Stainless with TFM seats: 2000 psig (137 barg) at 100°F(38°C).
- Valve with Butterfly Handle is not applicable TFM Seats.

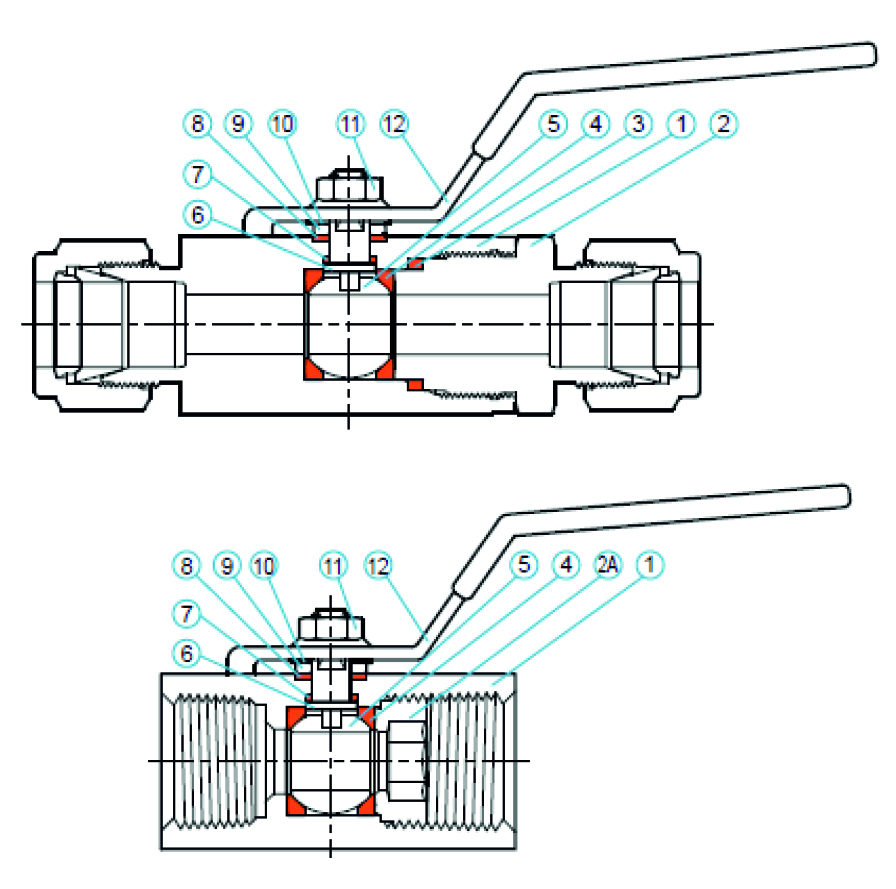

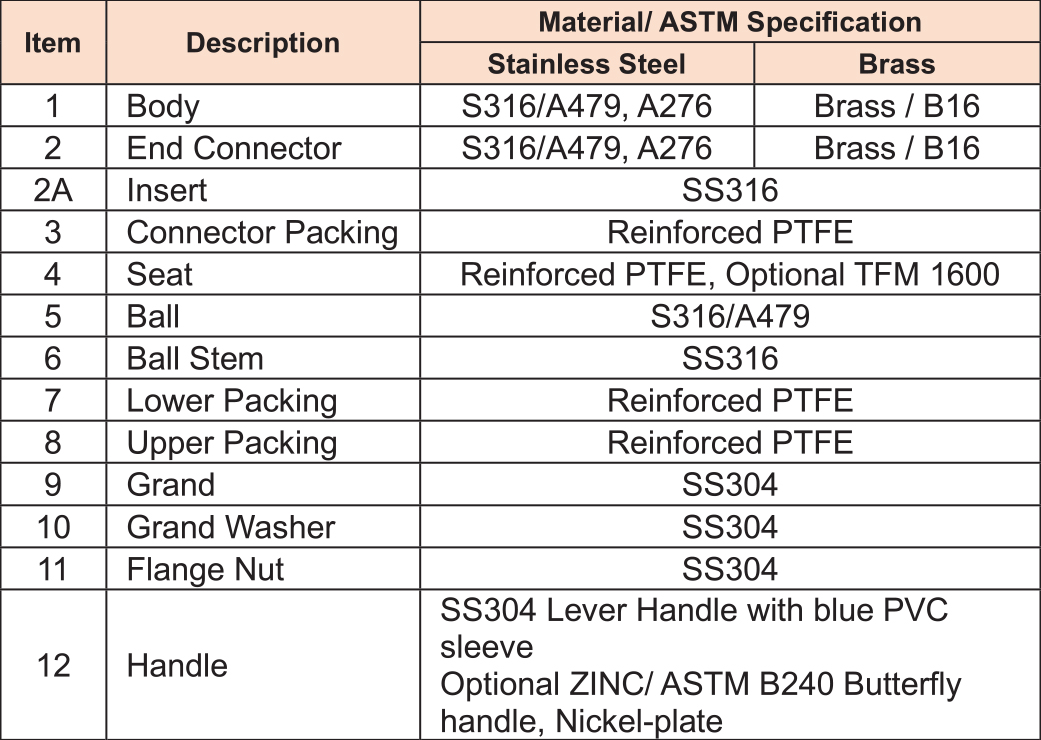

Materials of Construction
Applications
• Water, Oil, Gas • Fuel Lines • Refineries • Petrochemical Plants • Steel mills • Heavy Vehicles • General duty applications
Factory Test
- Every valve is factory tests with Nitrogen@600psig(41bar) for leakage at the seat to a maximum allowable leak of 0.1 scc/min.
- The stem packing is tested for no detectable leakage
Cleaning and Packing
- All valves are cleaned and packaged in accordance with OTG-LOK standard cleaning and packaging procedures.
OTG-LOK Tube Fitting Ends
Female Thread Ends

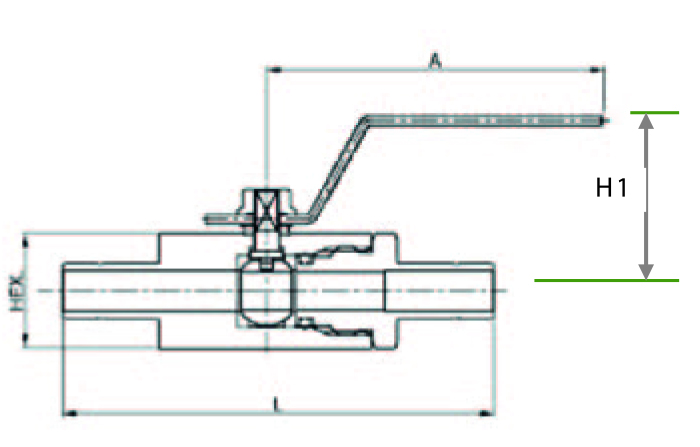

Tube Adapter Ends

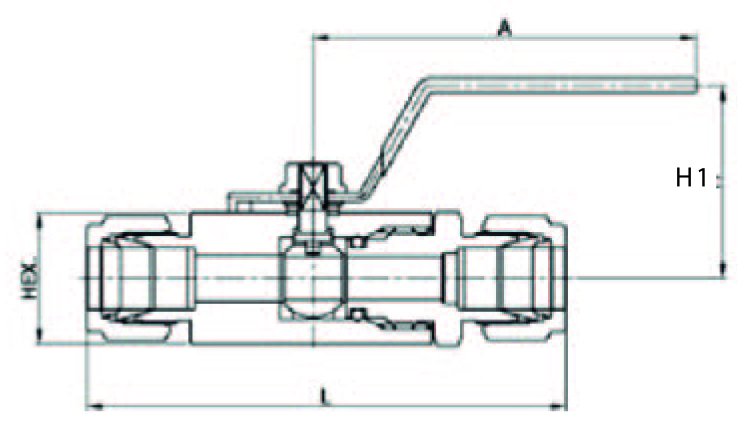

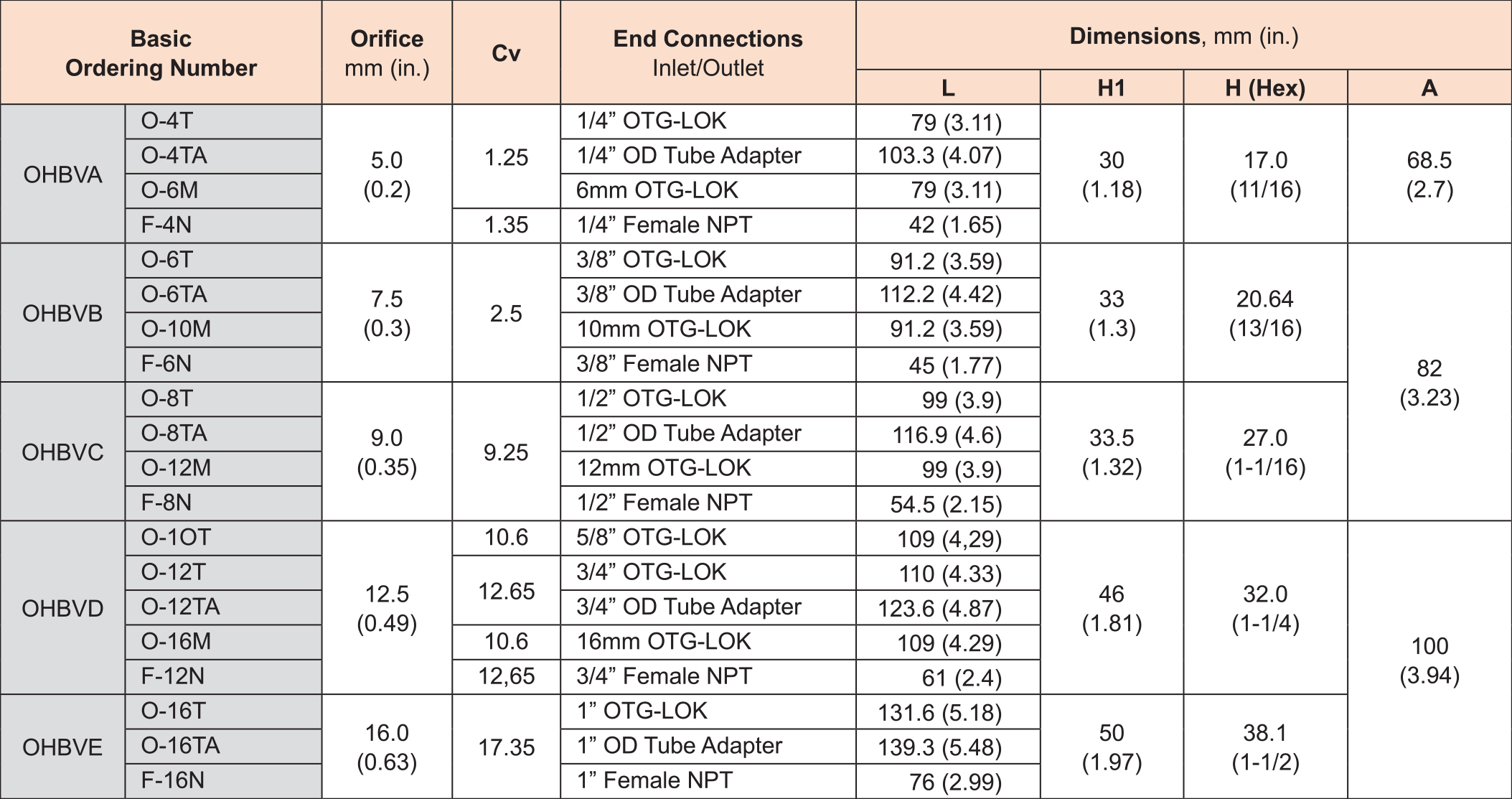

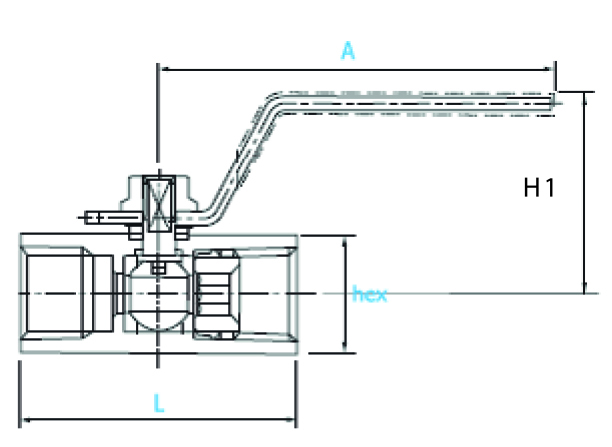

Ordering Information and Dimensions
How to Order
Dimensions are for reference only and are subject to change.

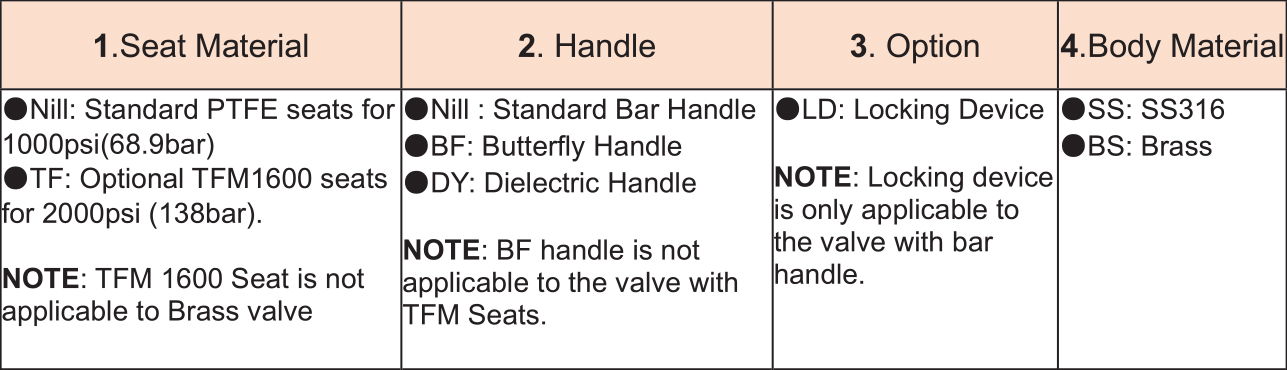

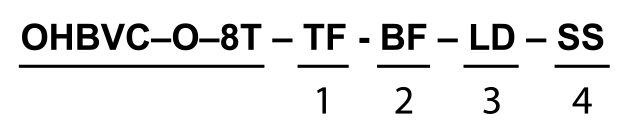

Select a basic ordering number, and applicable options.
SAFETY in VALVE SELETION
The system design, application must be taken into consideration to ensure otimal performance and safety. Selections of valve function and rating, proper installation, material copatibility, operation and maintenance of these valve are the responsibility of the system designer and the user. OTG accepts no liability for any improper selection, installation, operation or maintenance.
