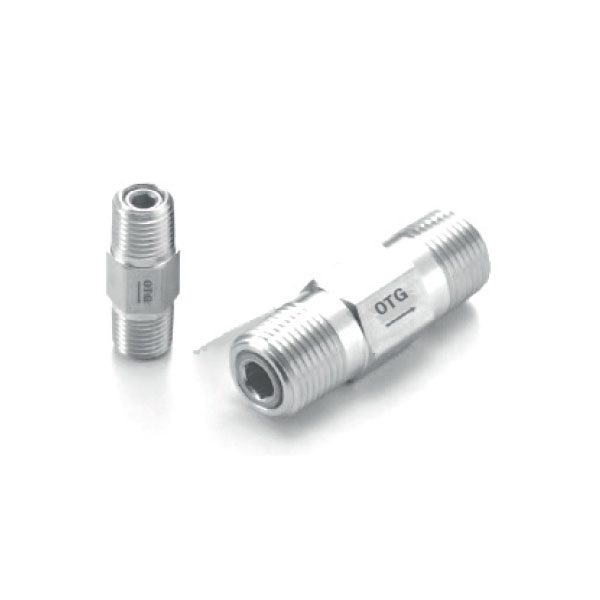

OPACV3 Series
On-PIECE Adjustable Check Valves
Features
■ Pressure rating up to 3000psi (206bar) @ 70°F(21°C)
■ Temperature rating up to 375°F (191°C) with standard Viton O-ring.
■ Choice of materials: Standard SS316 and Brass.
■ Cracking pressures inlude: 3, 50, 150, 350, 600 psi.

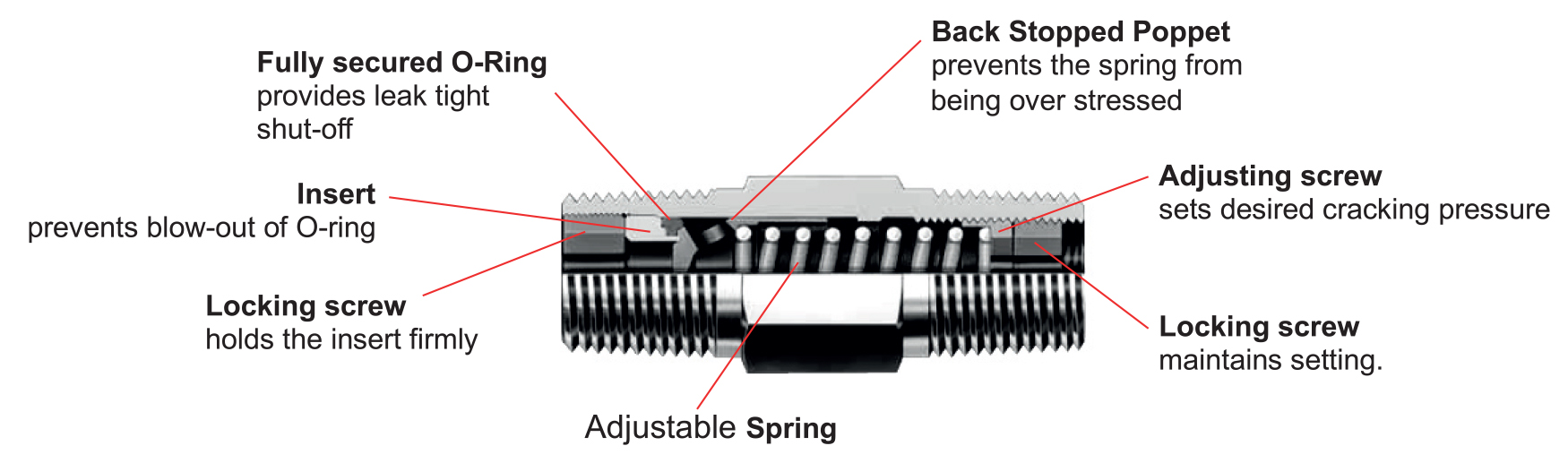

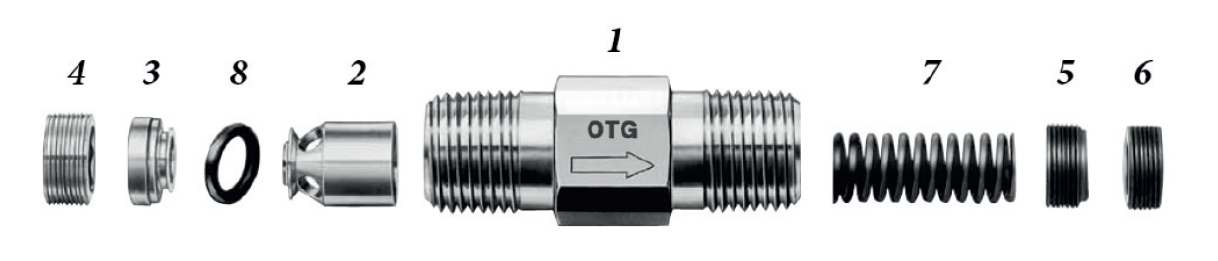

Design

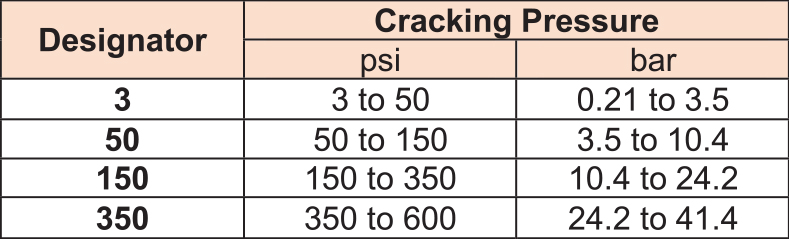

Spring Designator / Cracking and Reseal Pressure @ 70°F(21°C)

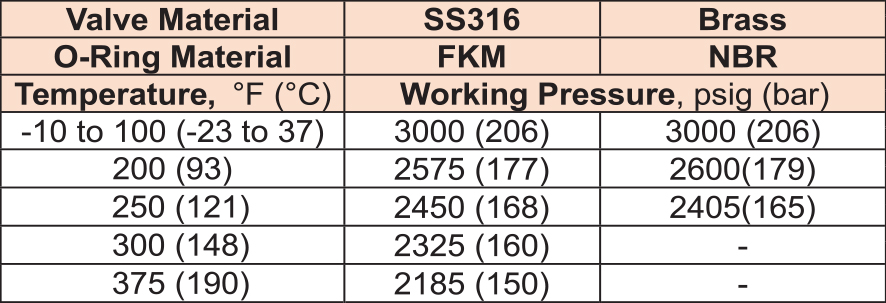

Pressure-Temperature Ratings

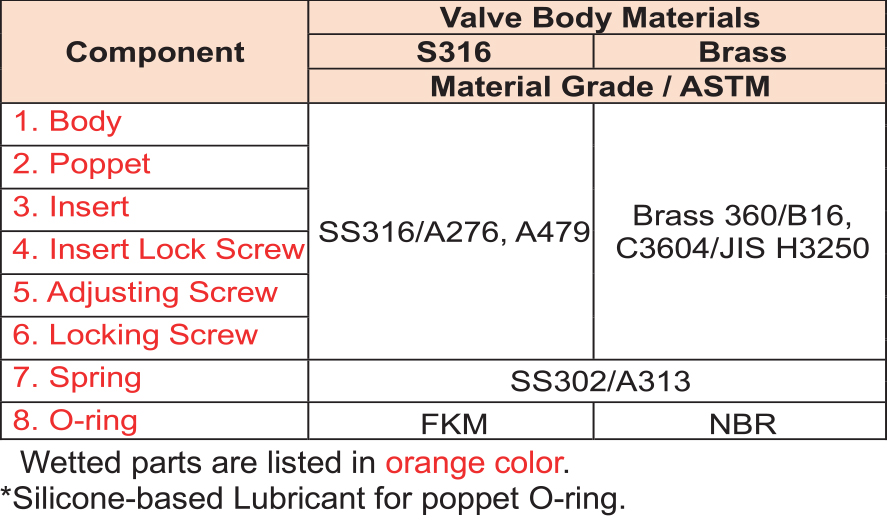

Materials of Construction

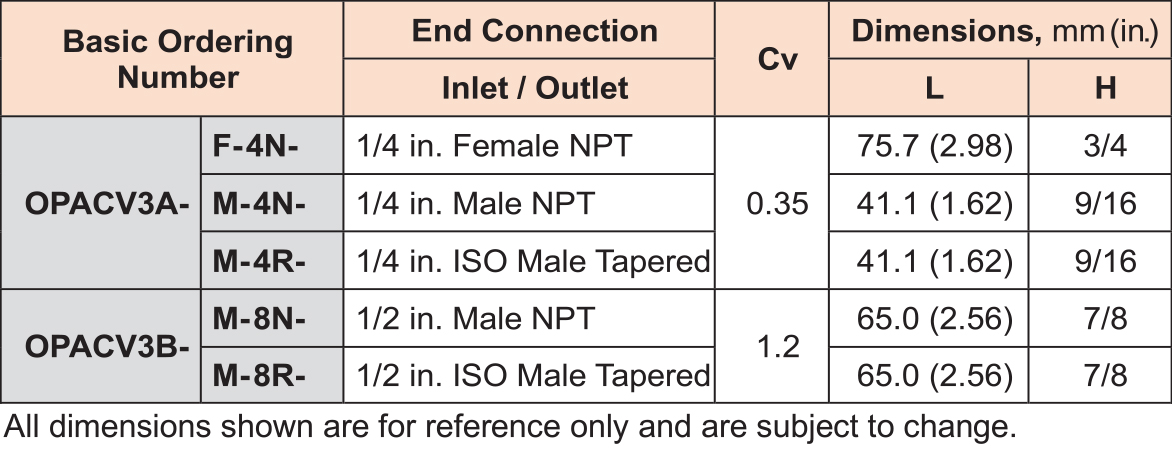

Ordering Information and Dimensions
How to Order,
Add a cracking pressure range designator to the basic ordering number and then specify valve material cesignator.
Body Material: SS316- SS Brass - BS Example: OPACV3A-M-4N-3-SS

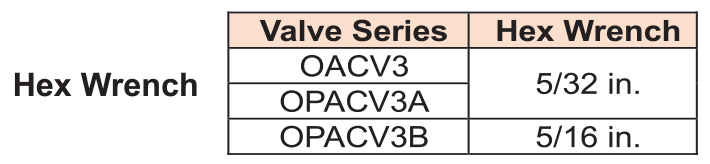

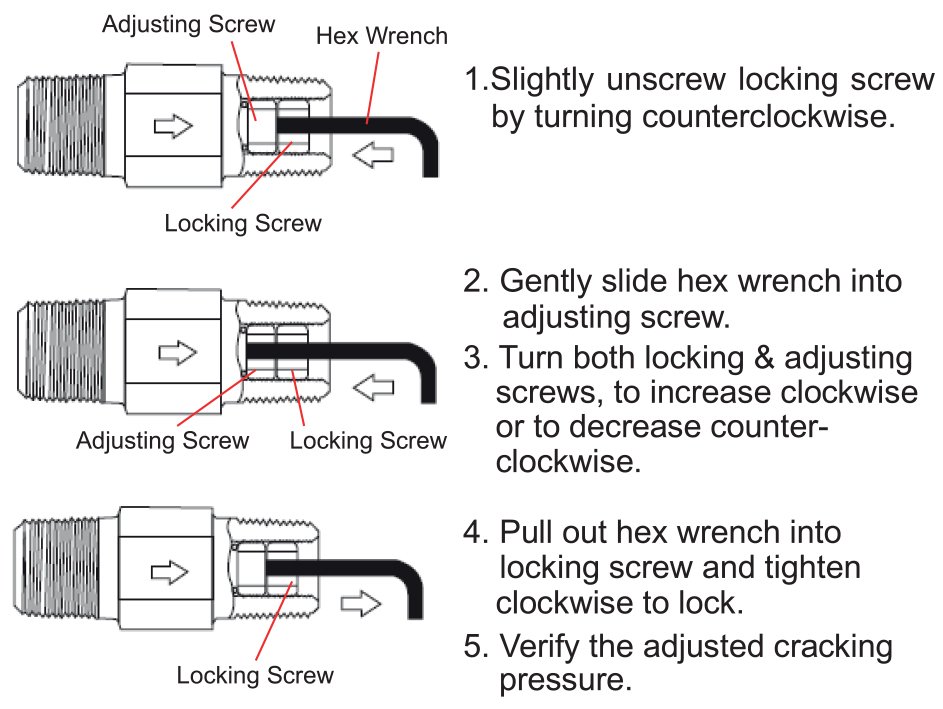

Cracking-Pressure Adjustment Procedure
