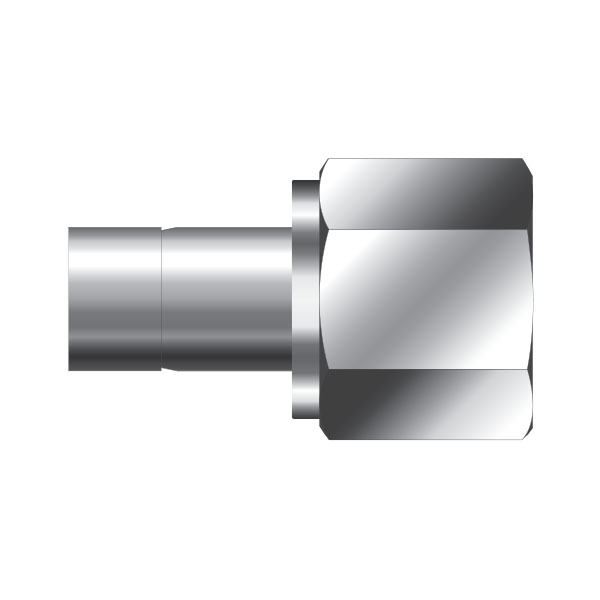

OFA-GZ
Female ISO Parallel Thread Adapter
Connects fractional OTG-LOK tube fitting port to male ISO parallel thread

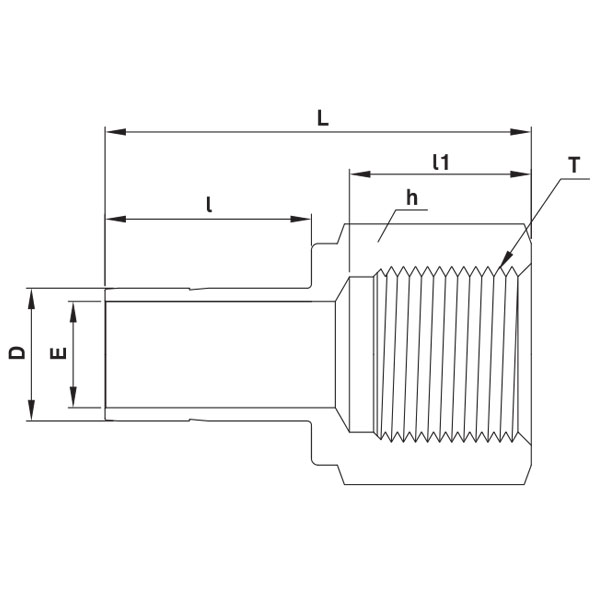

| Part No. |
Tube O.D D |
T G(PF) |
E Min. |
Width across flat | l | l1 | L | ||
| h | |||||||||
| in. | mm | in. | mm | ||||||
| OFA 4-2GZ | 1/4 | 6.35 | 1/8 | 4.32 | 9/16 | 14.28 | 15.75 | 13.0 | 31.75 |
| OFA 4-4GZ | 1/4 | 6.35 | 1/4 | 4.32 | 3/4 | 19.05 | 15.75 | 18.5 | 38.10 |
| OFA 6-4GZ | 3/8 | 9.52 | 1/4 | 6.86 | 3/4 | 19.05 | 17.50 | 18.5 | 39.40 |
| OFA 6-6GZ | 3/8 | 9.52 | 3/8 | 6.86 | 15/16 | 23.81 | 17.50 | 18.5 | 39.40 |
| OFA 8-8GZ | 1/2 | 12.70 | 1/2 | 9.65 | 1-1/16 | 26.98 | 23.20 | 22.1 | 49.50 |
