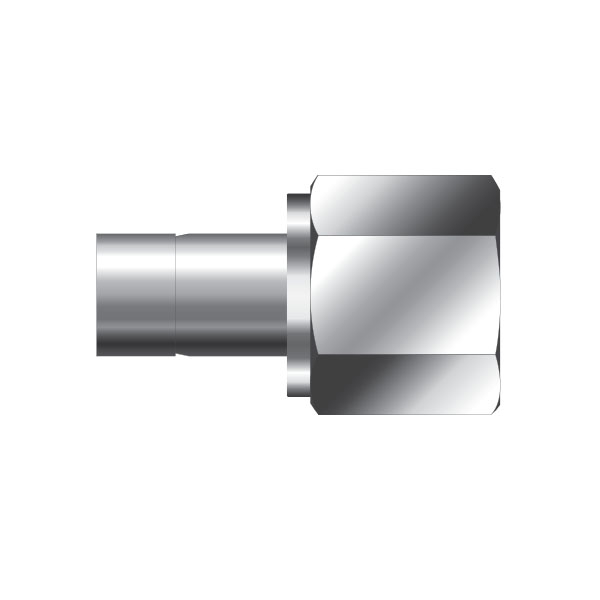

OFA-R
Female ISO Tapered Adapter
Connects fractional OTG-LOK tube fitting port to male ISO tapered thread
| Part No. |
Tube O.D D |
T (PT) |
E Min. |

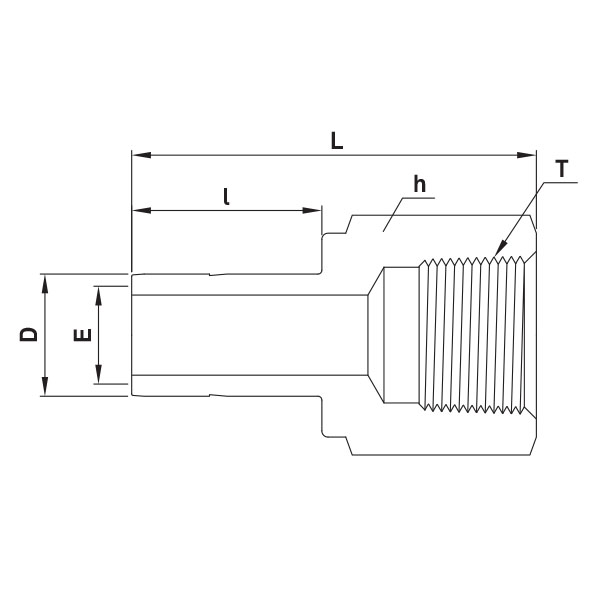

Width across flat | l | L | ||
| h | ||||||||
| in. | mm | in. | mm | |||||
| OFA 4-2R | 1/4 | 6.35 | 1/8 | 4.57 | 9/16 | 14.28 | 15.75 | 33.02 |
| OFA 4-4R | 1/4 | 6.35 | 1/4 | 4.57 | 3/4 | 19.05 | 15.75 | 37.10 |
| OFA 6-4R | 3/8 | 9.52 | 1/4 | 7.11 | 3/4 | 19.05 | 17.50 | 38.10 |
| OFA 6-6R | 3/8 | 9.52 | 3/8 | 7.11 | 7/8 | 22.22 | 17.50 | 40.38 |
| OFA 8-4R | 1/2 | 12.70 | 1/4 | 9.90 | 3/4 | 19.05 | 23.20 | 43.43 |
| OFA 8-6R | 1/2 | 12.70 | 3/8 | 9.90 | 7/8 | 22.22 | 23.20 | 45.46 |
| OFA 8-8R | 1/2 | 12.70 | 1/2 | 9.90 | 1-1/16 | 26.98 | 23.20 | 51.80 |
| OFA 10-8R | 5/8 | 15.87 | 1/2 | 12.70 | 1-1/16 | 26.98 | 24.70 | 53.84 |
| OFA 12-8R | 3/4 | 19.05 | 1/2 | 14.98 | 1-1/16 | 26.98 | 24.70 | 52.83 |
| OFA 12-12R | 3/4 | 19.05 | 3/4 | 14.98 | 1-5/16 | 33.33 | 24.70 | 54.86 |
| OFA 16-16R | 1 | 25.40 | 1 | 20.06 | 1-5/8 | 41.27 | 31.70 | 64.26 |
Connects metric OTG-LOK tube fitting port to male ISO tapered thread
| Part No. |
Tube O.D D |
T (PT) |
E Min. |
Width across flat | l | L |
| h | ||||||
| OFA 6M-2R | 6 | 1/8 | 4.1 | 14 | 15.70 | 32.50 |
| OFA 6M-4R | 6 | 1/4 | 4.1 | 19 | 15.70 | 37.10 |
| OFA 8M-4R | 8 | 1/4 | 5.6 | 19 | 16.80 | 37.60 |
| OFA 10M-4R | 10 | 1/4 | 7.1 | 19 | 17.50 | 38.10 |
| OFA 10M-6R | 10 | 3/8 | 7.1 | 22 | 17.50 | 40.10 |
| OFA 12M-4R | 12 | 1/4 | 8.8 | 19 | 23.10 | 43.70 |
| OFA 12M-6R | 12 | 3/8 | 8.8 | 22 | 23.10 | 46.00 |
| OFA 12M-8R | 12 | 1/2 | 8.8 | 27 | 23.10 | 52.30 |
