OGA-GG

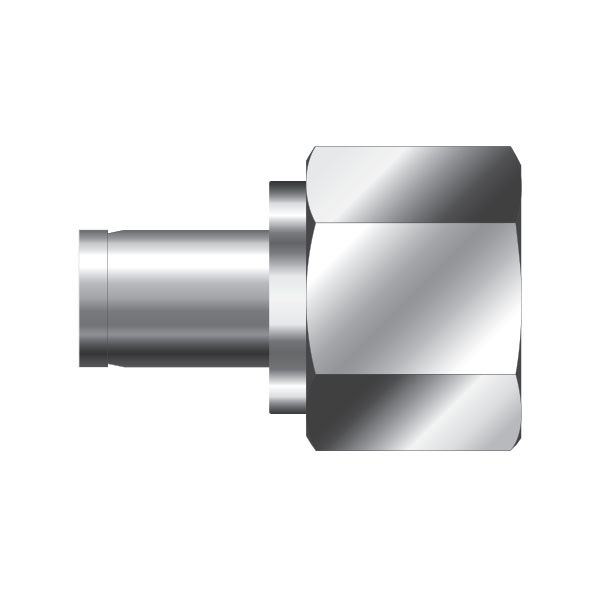

Female ISO Parallel Thread Gauge Adapter
Connects fractional OTG-LOK tube fitting port to Gauge (male ISO parallel thread)

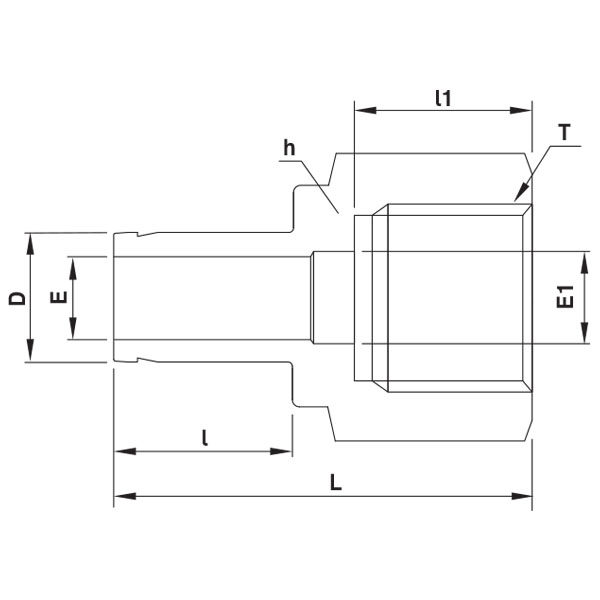

| Part No. |
Tube O.D D |
T G(PF) |
E Min. |
E1 | Width across flat | l | l1 | L | ||
| h | ||||||||||
| in. | mm | in. | mm | |||||||
| OGA 4-2GG | 1/4 | 6.35 | 1/8 | 4.32 | 4.32 | 9/16 | 14.28 | 15.75 | 12.0 | 32.00 |
| OGA 4-4GG | 1/4 | 6.35 | 1/4 | 4.32 | 5.5 | 3/4 | 19.05 | 15.75 | 12.9 | 35.30 |
| OGA 6-6GG | 3/8 | 9.52 | 3/8 | 6.6 | 6.5 | 15/16 | 23.81 | 17.50 | 14.1 | 39.37 |
| OGA 8-8GG | 1/2 | 12.70 | 1/2 | 9.65 | 7.0 | 1-1/16 | 26.98 | 23.10 | 18.9 | 45.72 |
Connects metric OTG-LOK tube fitting port to female ISO parallel thread
| Part No. |
Tube O.D D |
T G(PF) |
E Min. |
E1 | Width across flat | l | l1 | L |
| h | ||||||||
| OGA 6M-2GG | 6M | 1/8 | 4.1 | 4.1 | 14 | 15.7 | 12.0 | 32.0 |
| OGA 6M-4GG | 6M | 1/4 | 4.1 | 5.5 | 19 | 15.7 | 13.0 | 35.3 |
| OGA 6M-6GG | 6M | 3/8 | 4.1 | 6.5 | 24 | 15.7 | 14.22 | 38.4 |
| OGA 6M-8GG | 6M | 1/2 | 4.1 | 7.0 | 27 | 15.7 | 18.9 | 42.9 |
| OGA 8M-4GG | 8M | 1/4 | 5.5 | 5.5 | 19 | 16.8 | 13.0 | 33.0 |
| OGA 8M-6GG | 8M | 3/8 | 5.5 | 6.5 | 24 | 16.8 | 14.22 | 39.3 |
| OGA 8M-8GG | 8M | 1/2 | 5.5 | 7.0 | 27 | 16.8 | 18.9 | 43.7 |
| OGA 10M-4GG | 10M | 1/4 | 7.7 | 5.5 | 19 | 17.5 | 13.0 | 34.5 |
| OGA 10M-6GG | 10M | 3/8 | 7.7 | 6.5 | 24 | 17.5 | 14.22 | 39.3 |
| OGA 10M-8GG | 10M | 1/2 | 7.7 | 7.0 | 27 | 17.5 | 18.9 | 40.1 |
| OGA 12M-4GG | 12M | 1/4 | 9.1 | 5.5 | 19 | 23.1 | 13.0 | 40.1 |
| OGA 12M-6GG | 12M | 3/8 | 9.1 | 6.5 | 24 | 23.1 | 14.22 | 44.9 |
| OGA 12M-8GG | 12M | 1/2 | 9.1 | 7.0 | 27 | 23.1 | 18.9 | 48.8 |
| OGA 15M-8GG | 15M | 1/2 | 12.0 | 7.0 | 27 | 24.65 | 18.9 | 49.0 |
| OGA 16M-8GG | 16M | 1/2 | 12.0 | 7.0 | 27 | 24.6 | 18.9 | 49.0 |
| OGA 18M-8GG | 18M | 1/2 | 13.9 | 7.0 | 27 | 24.9 | 18.9 | 49.3 |
| OGA 22M-8GG | 22M | 1/2 | 18.3 | 7.0 | 27 | 26.6 | 18.9 | 52.0 |
| OGA 25M-8GG | 25M | 1/2 | 19.8 | 7.0 | 30 | 31.7 | 18.9 | 56.1 |
